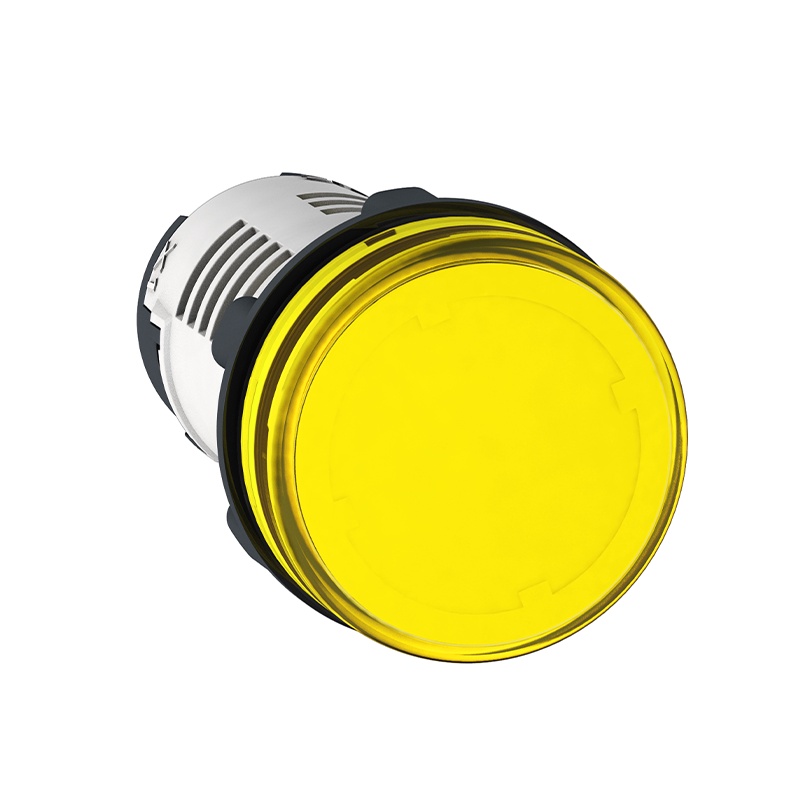

Schneider Pilot Light หลอดไฟแสดงสถานะ แบบต่อตรงใช้ไฟ 220 / 240 V ขนาด 22/25 มม. สีเหลือง รหัส XB7EV05MP รุ่น Harmony XB7

- Schneider LED Yellow Pilot Light 230V รหัส XB7EV05MP - หลอดไฟแสดงสถานะสีเหลือง - ใช้ได้กับช่องขนาด 22mm และ 25mm - ผลิตภัณฑ์แบบชิ้นเดียว เลือกใช้ง่าย - ตรงตามมาตรฐาน IEC947-5-1, UL และ CSA Main Range of product : Harmony XB7 Product or component type : Pilot light Device short name : XB7 Mounting diameter : 22 mm Sale per indivisible quantity : 10 Shape of signaling unit head : Round Cap/operator or lens colour : Yellow Light source : LED Bulb base : Integral LED [Us] rated supply voltage : 230...240 V AC 50/60 Hz Device presentation : Monolithic product Complementary Height : 29 mm Width : 29 mm Depth : 54 mm Terminals description ISO n°1 : (X1-X2)PL Net weight : 0.02 kg Device mounting : Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 Fixing center >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm Fixing mode : Fixing nut beneath head: 2…2.4 N.m Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 Tightening torque : 0.8…1.2 N.m conforming to IEC 60947-1 Shape of screw head Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver [Ui] rated insulation voltage : 250 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1 Signalling type : Steady Supply voltage limits : 195…264 V AC Current consumption : 16...20 mA Service life : 70000 h at rated voltage and 25 °C Environment Protective treatment : TH Ambient air temperature for storage : -40…70 °C Ambient air temperature for operation : -25…70 °C Overvoltage category : Class II conforming to IEC 60536 IP degree of protection IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 NEMA degree of protection NEMA 4 conforming to UL 50 E NEMA 12 conforming to UL 50 E Standards CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 UL 508 IEC 60947-5-1 JIS C8201-1 Vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance : 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 Electromagnetic compatibility : Disturbing field emission class B conforming to IEC 55011
