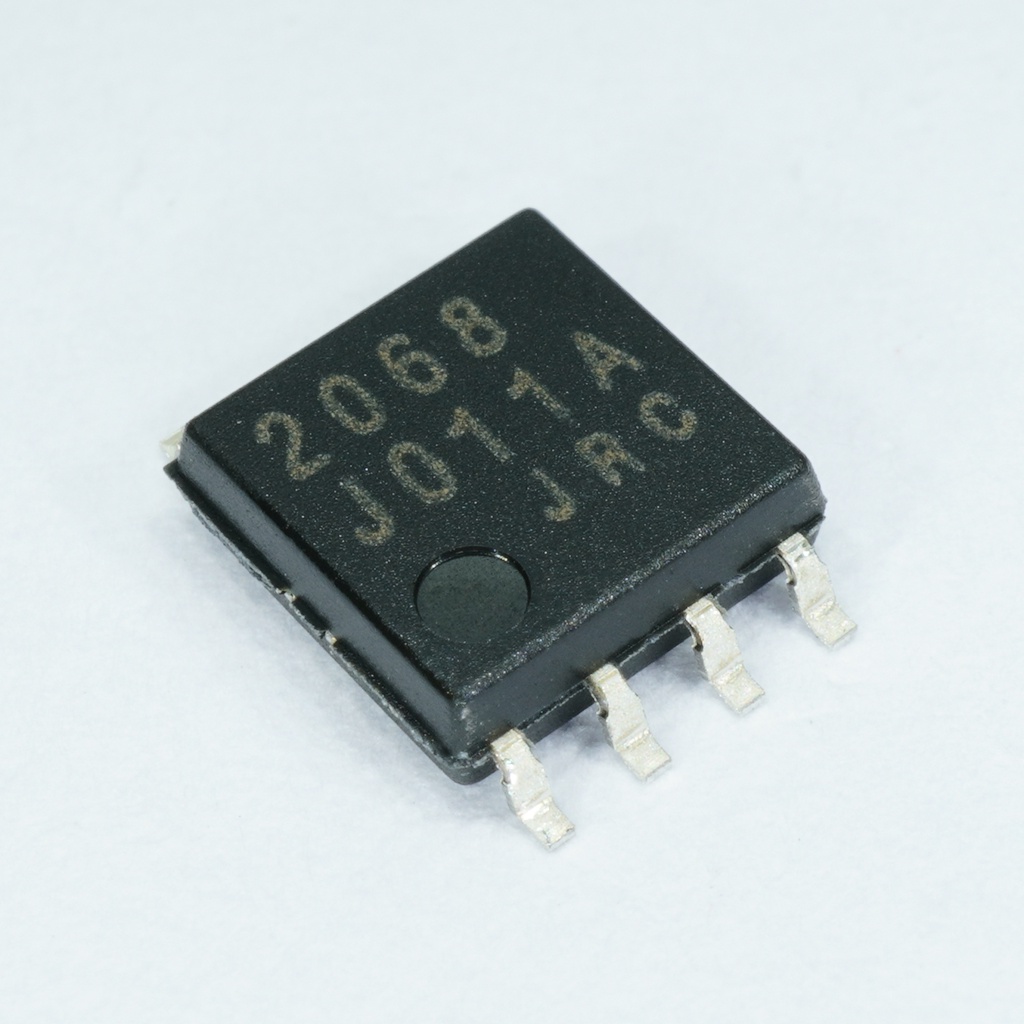

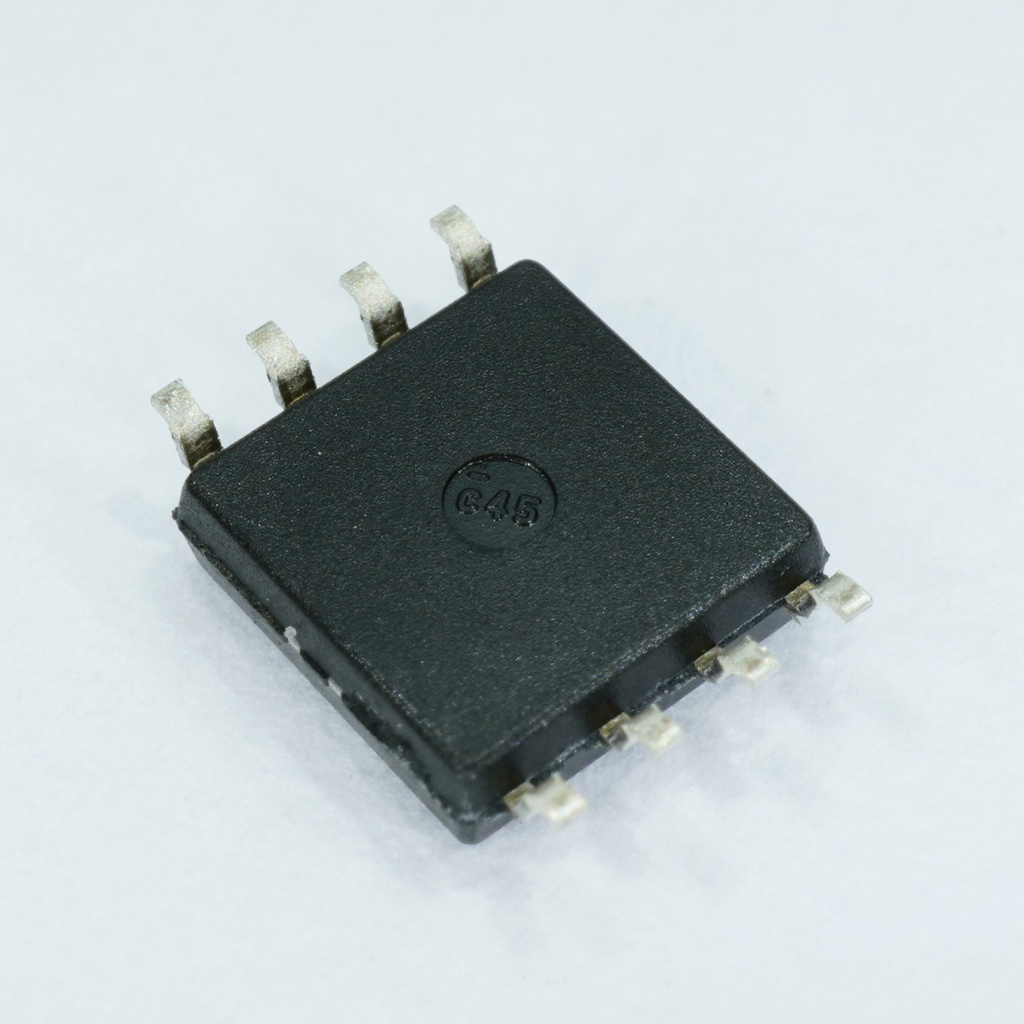

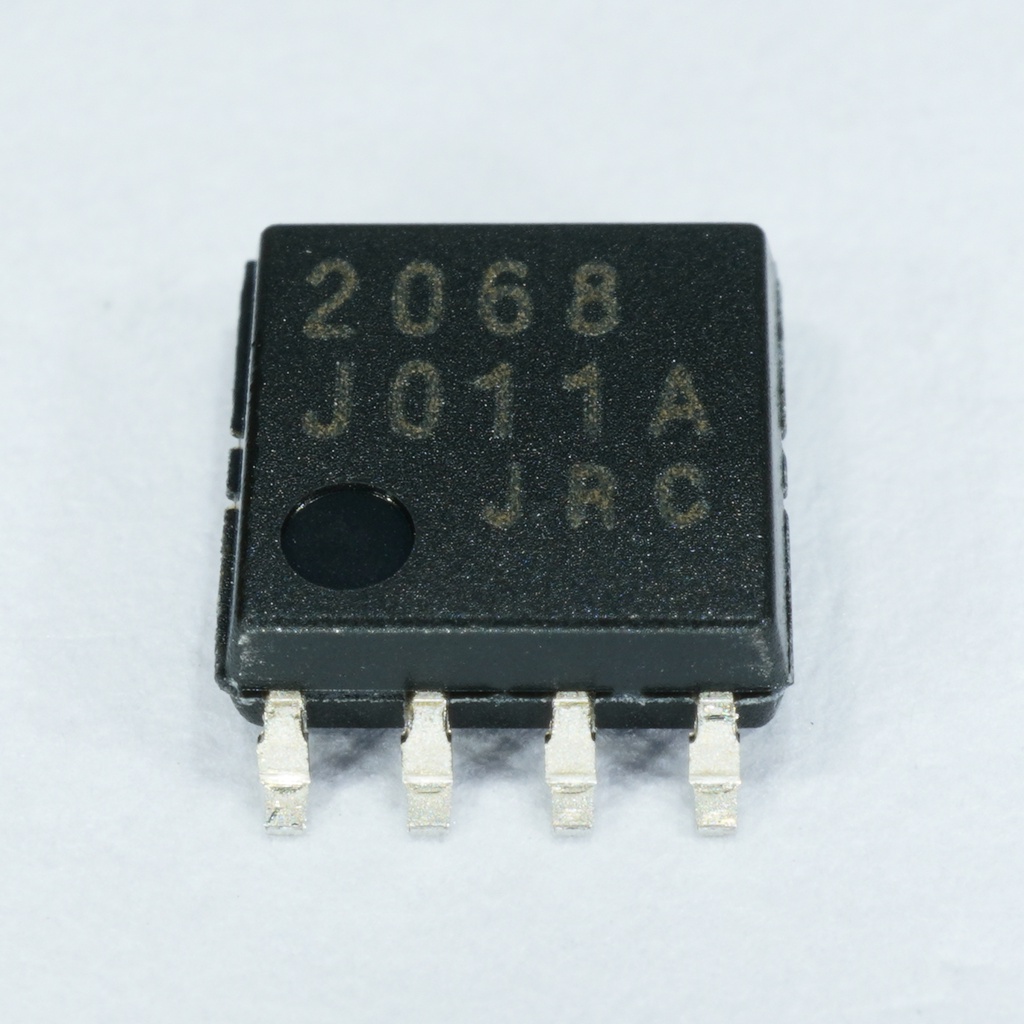

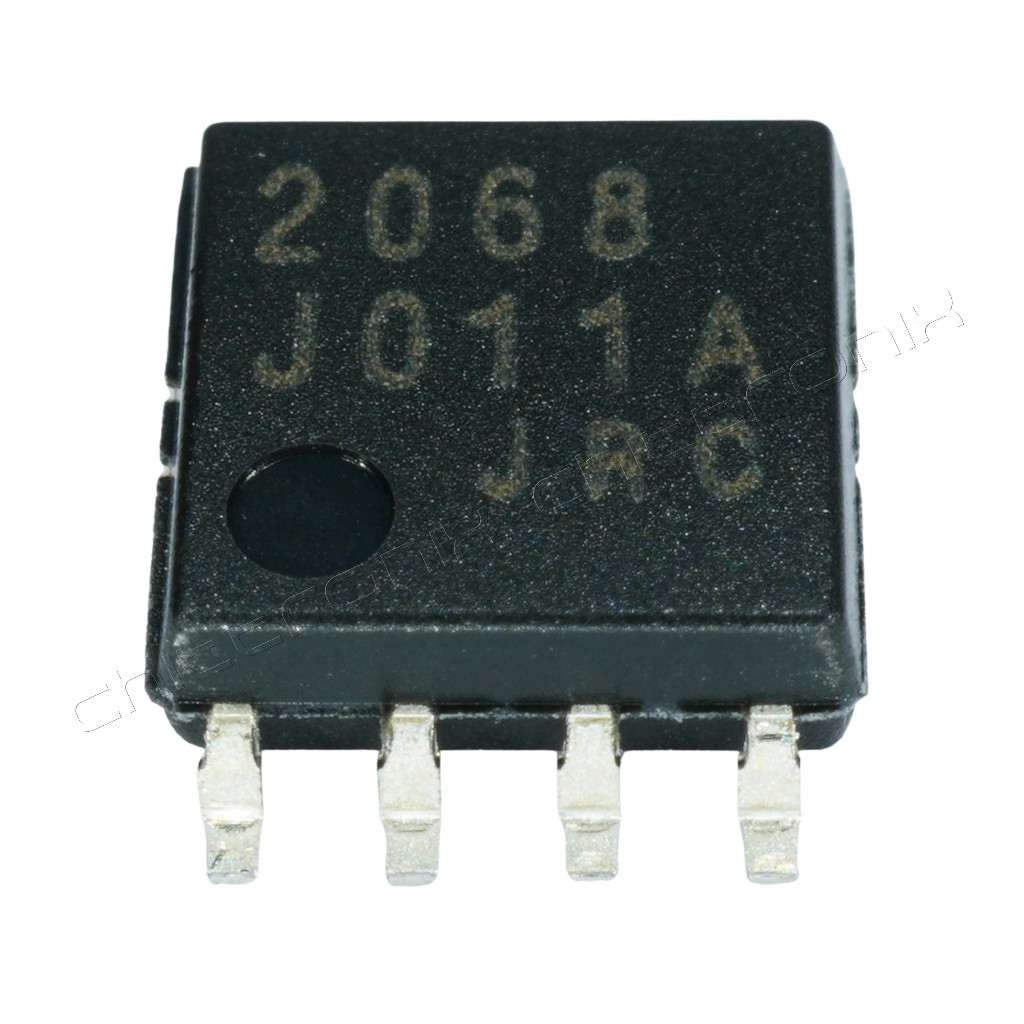

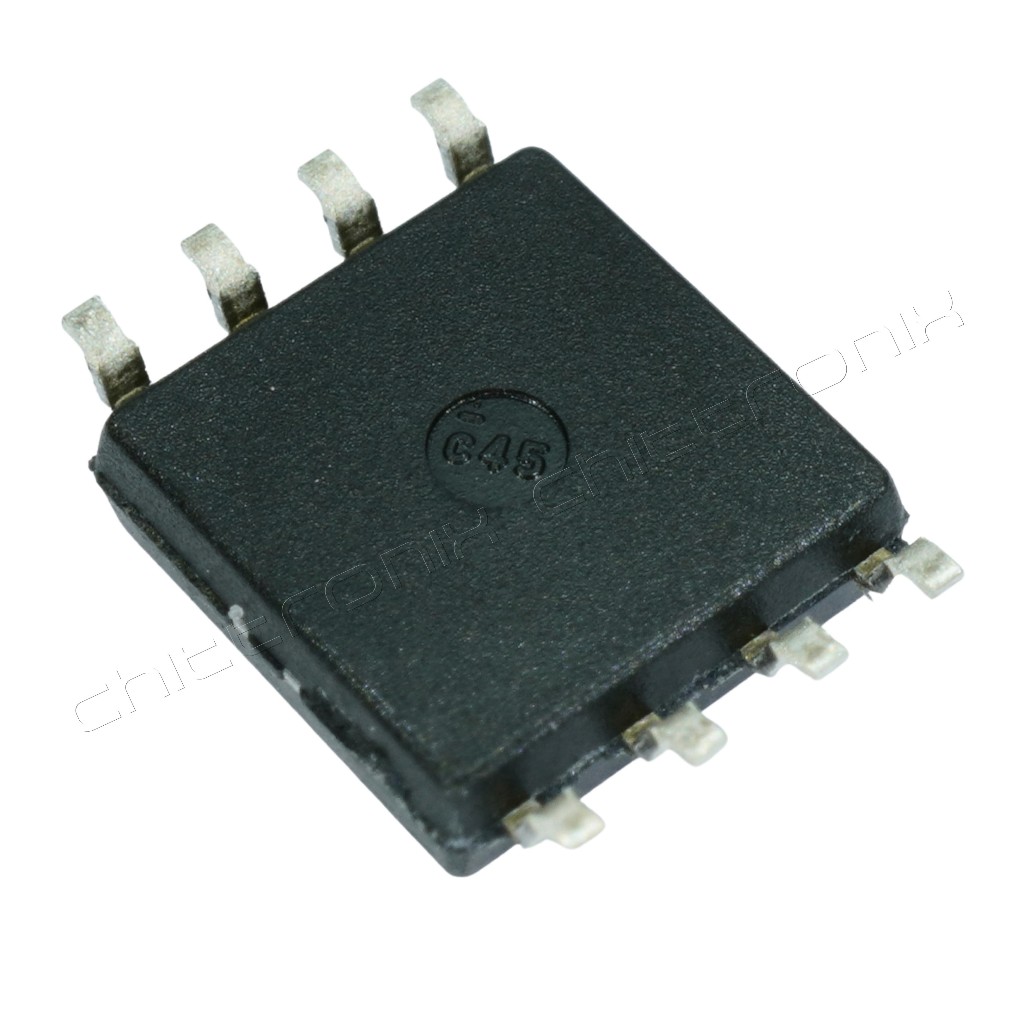

NJM2068M NJM2068 2068 IC ชิพ SMD Opamp ออปแอมป์ ยี่ห้อ JRC

Product Category : Operational Amplifiers - Op Amps Product : Operational Amplifiers Mounting Style : SMD/SMT Package/Case : DMP-8 Number of Channels : 2 Channel Slew Rate : 6 V/us GBP - Gain Bandwidth Product : 27 MHz Ib - Input Bias Current : 1 uA Vos - Input Offset Voltage : 3 mV Operating Supply Current : 8 mA Pd - Power Dissipation : 300 mW Operating Supply Voltage :+/- 4 V to +/- 18 V Operating Temperature : -20°C - 75°C Brand : JRC Height : 1.6 mm Length : 5 mm Width : 5 mm ชื่อสินค้า: NJM2068M SMD
