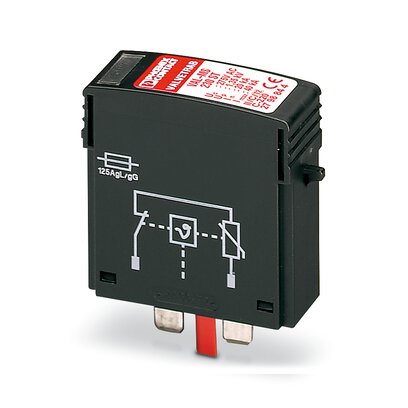

Type 2 surge protection plug VAL-MS 230 ST อุปกรณ์ป้องกันฟ้าผ่า ไฟกระชาก (2798844) [ไม่รวมbase ฐานรอง Surge]

Type 2 surge protection plug VAL-MS 230 ST - 2798844 [ไม่รวมbase ฐานรอง Surge] Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning. Design: 230 V AC - IEC test classification: II, T2 - EN type: T2 - IEC power supply system: TN, TT - Type: DIN rail module, two-section, divisible - Product type: Replacement plug - Number of positions: 1 - Surge protection fault message: optical - Arrester can be tested with CHECKMASTER from software version: From SW rev. 1.10 - Mode of protection: L-N, L-PEN - Direction of action: 1L-N/PE - Nominal voltage UN: 240/415 V AC (TN), 240/415 V AC (TT) - Nominal frequency fN: 50 Hz (60 Hz) - Maximum continuous voltage UC: 275 V AC - Residual current IPE: ≤ 0.45 mA - Standby power consumption PC: ≤ 120 mVA - Nominal discharge current In (8/20) µs: 20 kA - Maximum discharge current Imax (8/20) µs: 40 kA - Short-circuit current rating ISCCR: 25 kA - Voltage protection level Up: ≤ 1.35 kV - Residual voltage Ures: ≤ 1.35 kV (at In), ≤ 1.1 kV (at 10 kA), ≤ 1 kV (at 5 kA), ≤ 0.9 kV (at 3 kA) - TOV behavior at UT: 335 V AC (5 s / withstand mode), 440 V AC (120 min / safe failure mode) - Response time tA: ≤ 25 ns - Max. backup fuse with branch wiring: 125 A (gG) *สินค้ารับประกัน 1ปี *ออกใบกำกับภาษีได้ *เงื่อนไขเป็นไปตามที่บริษัทกำหนด
