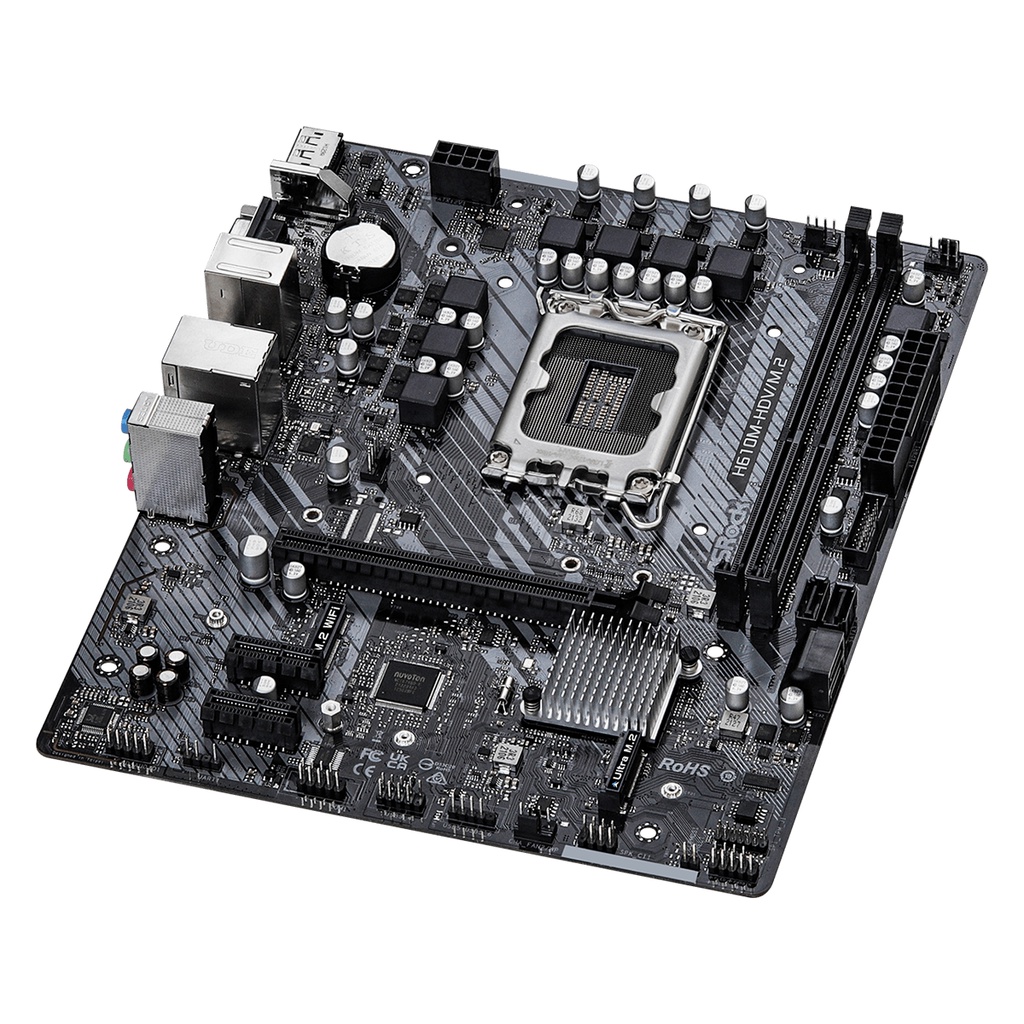

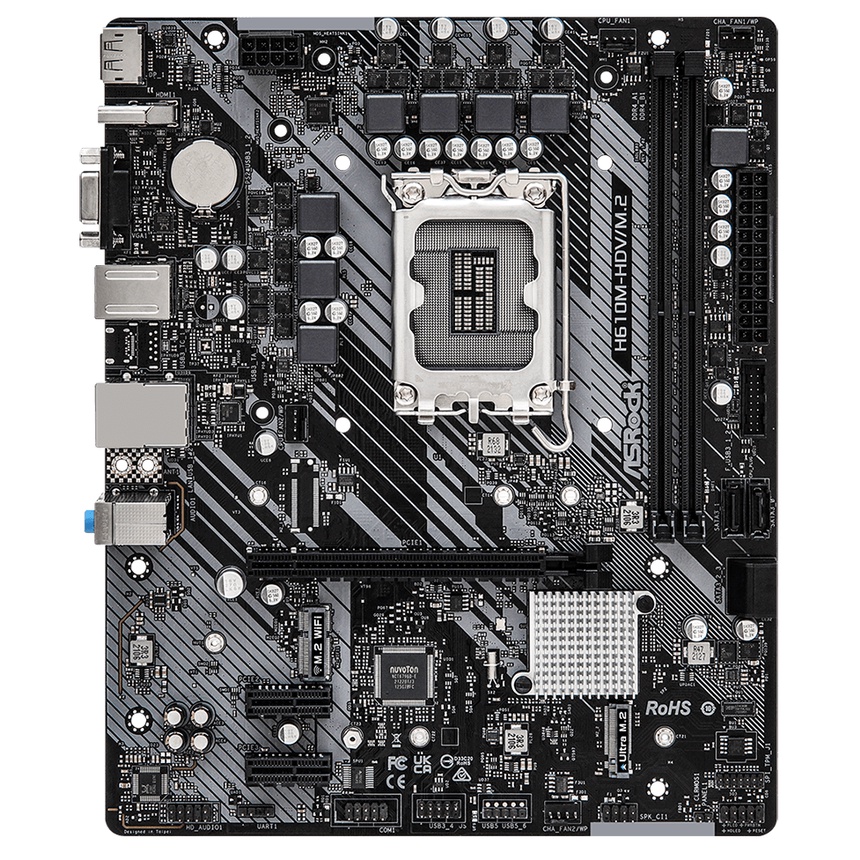

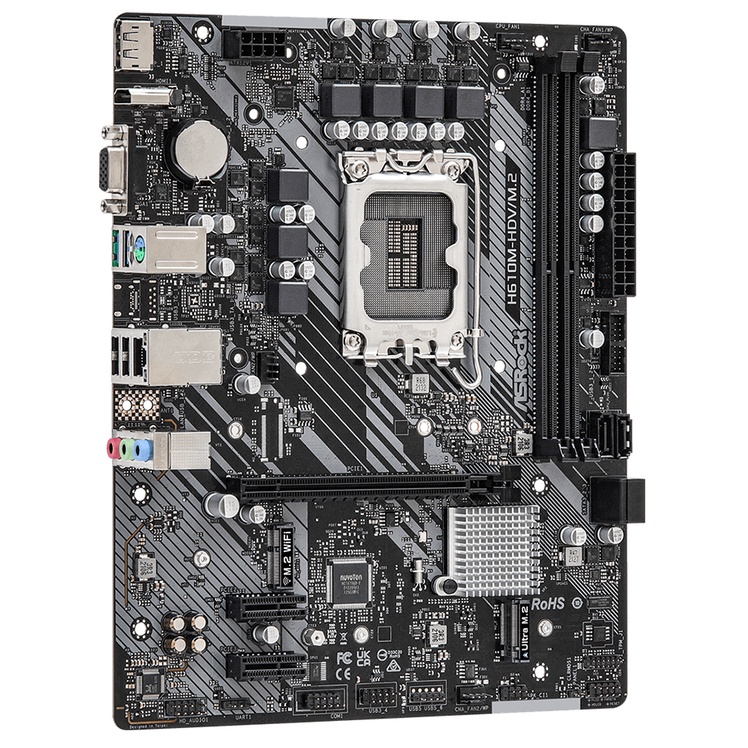

MAINBOARD (เมนบอร์ด) 1700 ASROCK H610M-HDV/M.2 NvmeGen-3,4(CPU GEN13 ต้อง Flash Bios) (DDR4) ประกัน 3 ปี

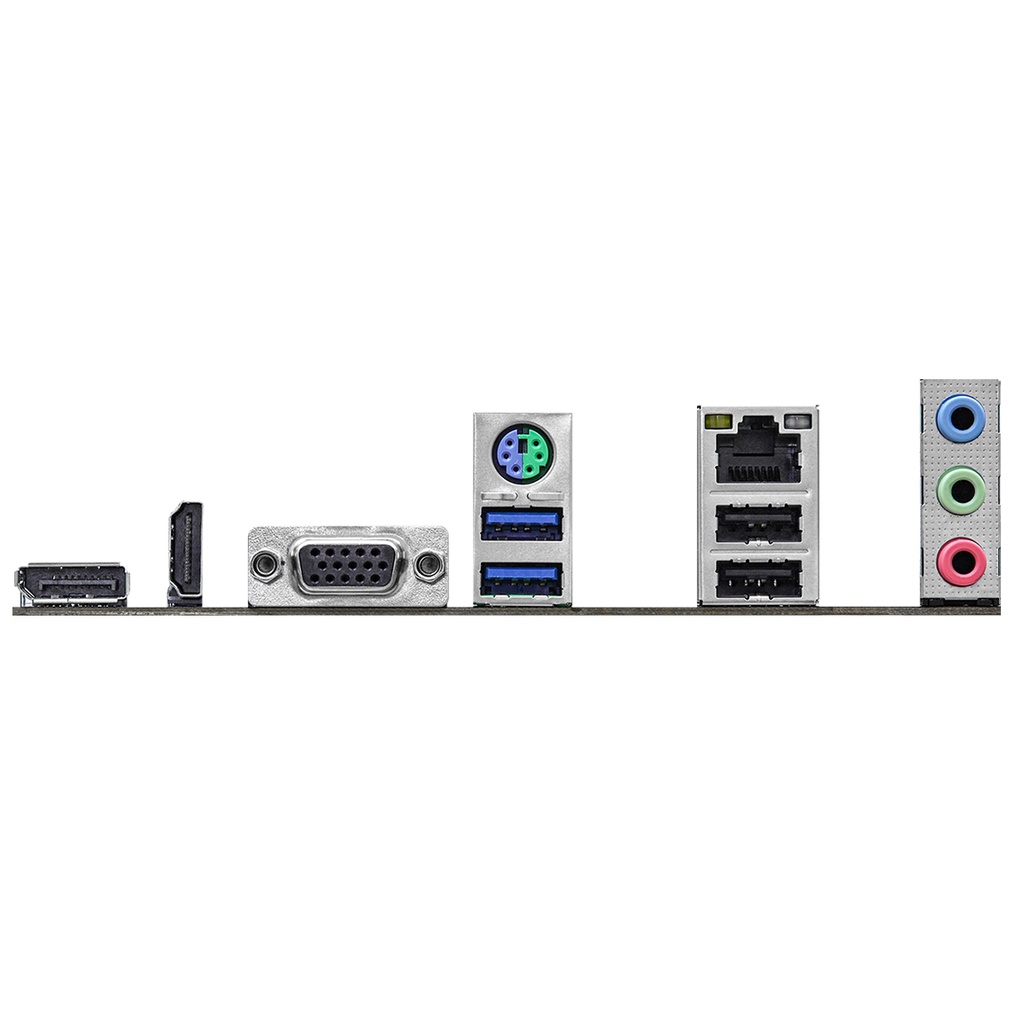

MAINBOARD (เมนบอร์ด) 1700 ASROCK H610M-HDV/M.2 (DDR4) *Windows 10 64-bit / Windows 11 64-bit* ประกัน 3 ปี - Supports 12th Gen Intel® Core™ Processors (LGA1700) (CPU GEN13 ต้อง Flash Bios) - 6 Phase Power Design - Supports DDR4 3200MHz - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 - 1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort, D-Sub - Realtek ALC887/897 7.1 CH HD Audio Codec - 4 SATA3 - 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 4 USB 3.2 Gen1 (2 Rear, 2 Front) - 5 USB 2.0 (2 Rear, 3 Front) - Intel® Gigabit LAN Brand ASROCK Model H610M-HDV/M.2 CPU Support Supports 12th Gen Intel® Core™ Processors (LGA1700) Digi Power design 6 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Socket 1700 Chipset Intel H610 Memory Support Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 Graphics Intel® Xe Graphics Architecture (Gen 12) Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Multi Graphic Support None Audio 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) Supports Surge Protection Expansion Slots 1 x PCIe Gen4x16 Slot* 2 x PCIe Gen3x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage 4 x SATA3 6.0 Gb/s Connectors* 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2 Kit USB N/A Internal I/O Connectors 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Back Panel Connectors 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone LAN Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports UEFI PXE Wireless Data Network None Form Factor Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm Solid Capacitor design H/W MONITORING Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Special Features ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop Software Features Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash Operating System Support Microsoft® Windows® 10 64-bit / 11 64-bit Dimension (W x D x H) : 20.10 x 24.40 x 3.70 cm Net Weight 0.46 KG Package Dimension (W x D x H) : 23.90 x 27.30 x 5.80 cm Gross Weight 0.86 KG Volume 3,784.33 cm3 Warranty การรับประกัน 3 ปี *ราคารวมภาษีมูลค่าเพิ่มแล้ว* ***** ออกใบกำกับภาษีได้ ***** 1. ทางบริษัทฯ ขอสงวนสิทธิ์ในการรับผิดชอบใดๆ อันเนื่องจากข้อผิดพลาดทางการพิมพ์ (ผิด/ตก) 2. ทางบริษัทฯ ขอสงวนสิทธิ์ในการเปลี่ยนแปลงราคาและโปรโมชั่นโดยไม่แจ้งให้ทราบล่วงหน้า #MCWINNER #MAINBOARD #เมนบอร์ด #1700 #ASROCK #H610M-HDV/M.2 #DDR4
