GY- NEO6Mv2 New Neo-6M Gps โมดูล Gps Neo6Mv2 พร้อมรีโมทควบคุม Eeprom Mwc Apm 2.5 ขนาดใหญ่สําหรับ Arduino

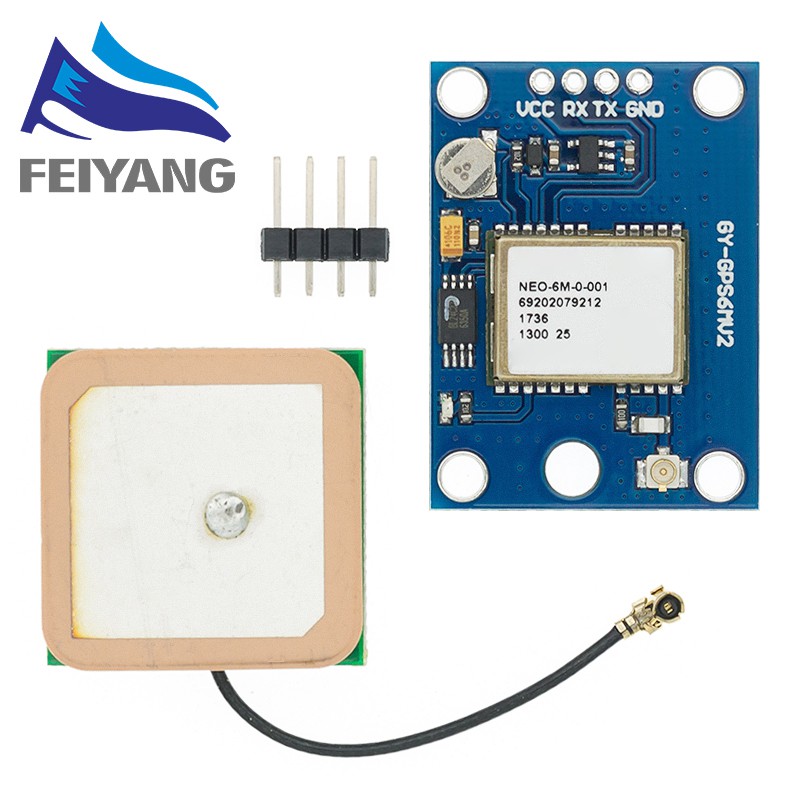

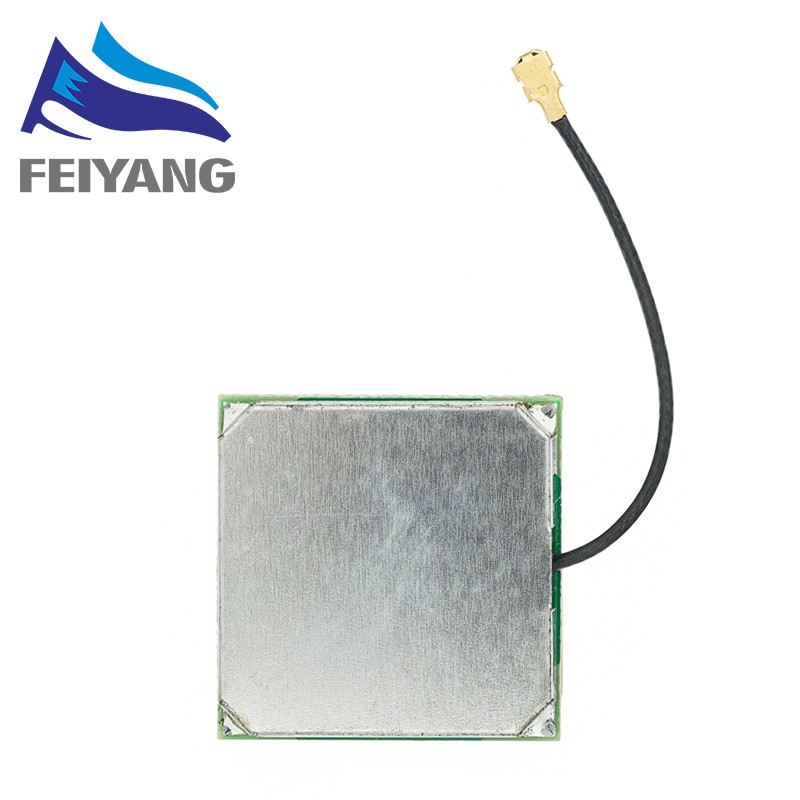

G GPS modules NEO-6M, 3V-5V power supply Universal 5V--------------------------------->VCC GND------------------------------>GND RXD------------------------------>TXD TXD------------------------------>RXD The module needs to be placed in the open air with the ceramic antenna facing upwards. The first positioning time is 1-10min. Please be patient and wait for positioning. Model: GY-GPS6MV2 Destined module with ceramic antenna, signal super Save the configuration parameter data EEPROM Down With data backup battery There are LED signal indicator Antenna size 25 * 25mm Module size 25mm * 35mm Installation aperture 3mm Default Baud Rate: 9600 Compatible with various flight control modules that provide GPS computer test software
