เซอร์โว KST X12-508 สำหรับยกพิท ฮอ450-480

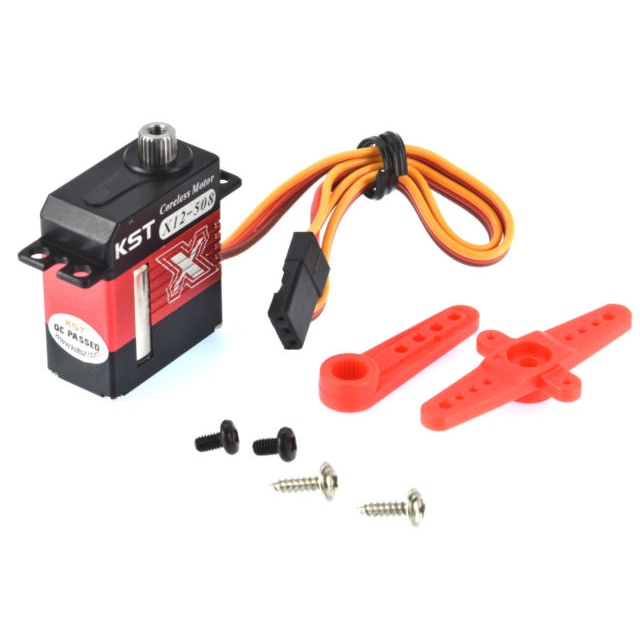

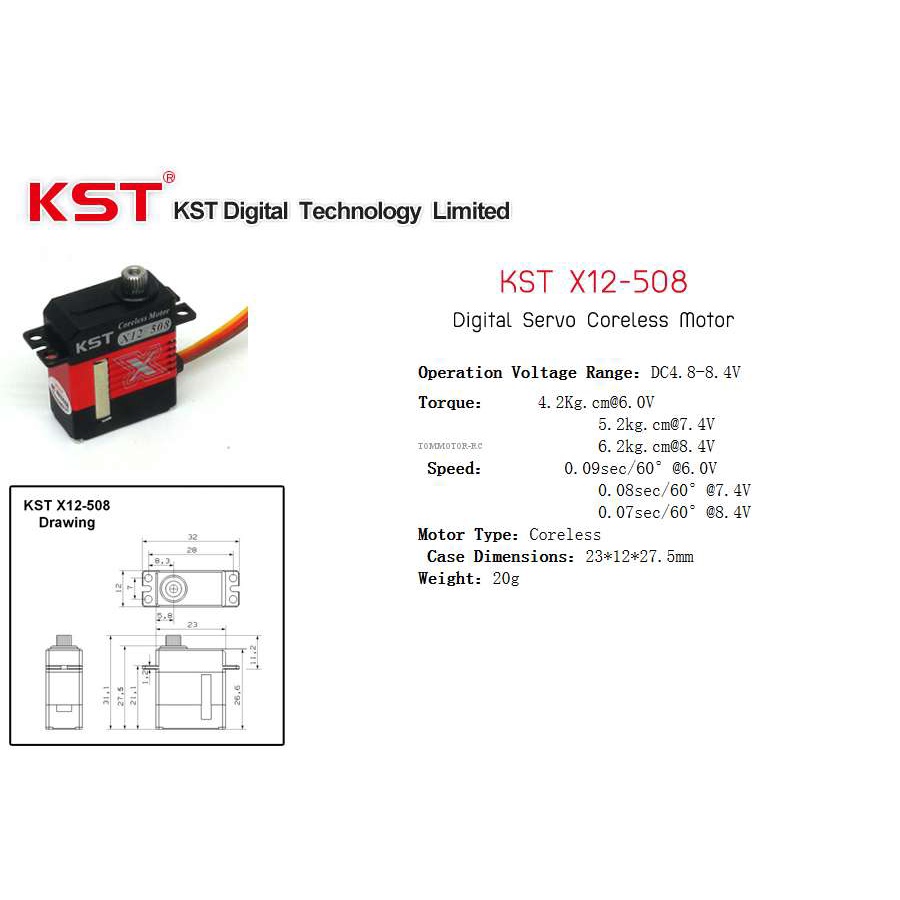

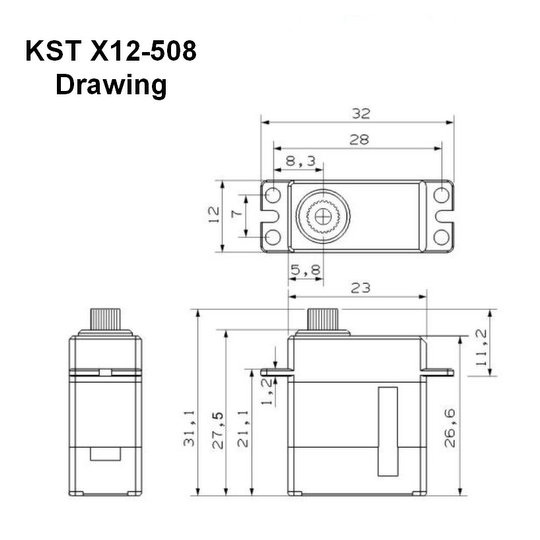

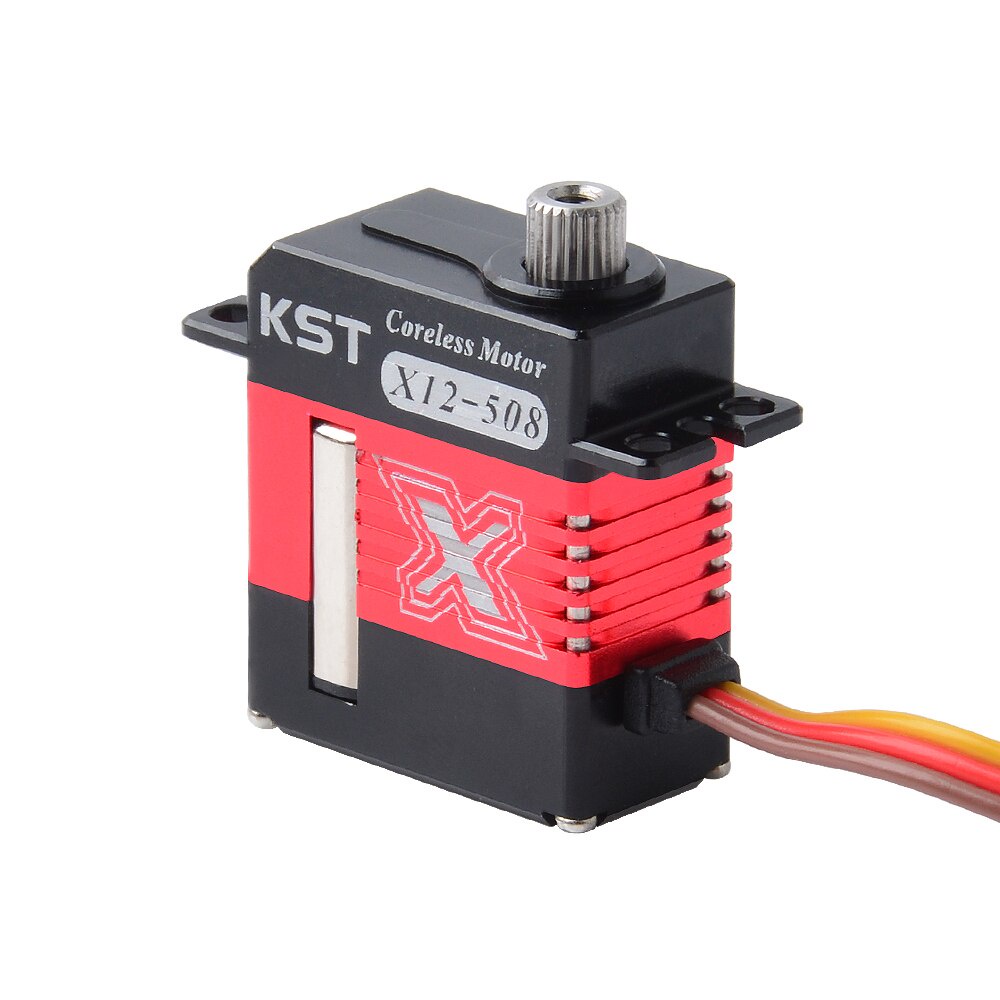

KST X12-508 Micro Cyclic Corelss HV Servo Includes: - Mini Cyclic KST X12-508 Coreless servo x 1pc Use for: - Goblin 380/420 and other helicopter use micro servos. Specification: Operating Voltage:DＣ4.8V-8.4V Size: 23*12*27.5mm Torque: 4.20Kg.cm@6.0V 5.20Kg.cm@7.4V 6.20Kg.cm@8.4V Speed: 0.09sec/60°@6.0V 0.08sec/60°@7.4V 0.07sec/60°@8.4V Weight: 20g Working Frequence: 1520us/333Hz, 900us-2100us --------------------------------------------------------------------------------- KST 113 SPECIFICATIONS Operatng Voltage : 4.8V-6.0V Torque : 1.8kg.cm@4.8V : 2.2kg.cm@6.0V Speed : 0.14sec/60 ํ@4.8V : 0.11sec/60 ํ@6.0V ------------------------------------------------------------------------------------ KST 215 Full CNC Metal Gears Coreless DC Motor CNC Aluminum casing Dual Ball Bearings. Made for the high demanding Flybarless Helicopters Use on both Cyclic or Rudder Operating Voltage:DC6.0V-7.4V Size:23*12*27.50mm Torque: 3.70Kg.cm@7.4V. 3.10Kg.cm@6.0V Speed: 0.05sec/60°@7.4V. 0.06sec/60°@6.0V Weight:20g Working Frequence:1520us/333Hz, 800us-2200us Ball Bearing: 2BB --------------------------------------------------------------------------------------- KST 589 Operating Volt 6.0V-8.4V Size： 35.50*15*32.7mm Torque: 6.50Kg.cm@6.0V 8.00Kg.cm@7.4V 9.20Kg.cm@8.4V Speed: 0.10sec/60°@6.0V 0.09sec/60°@7.4V 0.08sec/60°@8.4V Weight: 40g Working Frequence: 1520us/333Hz Motor:Φ15mm Coreless Ball Bearing: 2BB All metal case and metal gear. Fit for 500 class helicopter cyclic. Φ12mm Coreless Motor -------------------------------------------------------------------- KST 725 SPECIFICATIONS Operating Voltage : DC 6.0V-8.4V Size : 40.50*20*37mm Torque : 18kg.cm@8.4V : 16kg.cm@7.4V : 13kg.cm@6.0V Speed : 0.07sec/60 ํ@8.4V : 0.08sec/60 ํ@7.4V : 0.09sec/60 ํ@6.0V Weight : 68g Working Frequence : 1520us/333Hz, 900us-2100us Motor : 17mm Coreless Ball Bearing : 2BB ------------------------------------------------------------------------- KST BLS915 V2 Brushless Standard Servo For 550-700 Helicopters-The Stronger Brushless Motor And More Powerful Electronics The KST BLS915 V2 is the successor to the KST BLS915 (V1). The KST BLS915 V2 is a top class swashplate servo for 3D aerobatics. The BLS 915 V2 is absolutely robust thanks to the aluminum housing and the improved steel gearbox. The KST BLS915 V2 offers the following advantages over the BLS815. Due to the stronger brushless motor and more powerful electronics in conjunction with the hardened steel gearbox, the BLS915 V2 is clearly a class above the BLS815. The new housing with cooling fins extends the temperature range of the servo to 65 ° C. The high positioning speed in conjunction with the offered performance, the KST BLS915V2 HV is very well suited for advanced 3D helicopter pilots. Ideal for helicopters of the 600 to 700 class. Please refer to the servo specification of the model manufacturer when selecting the servos. Technical specifications: Operating voltage: DC 6.0v-8.4v Dimensions: 40.50 * 20 * 38mm Torque: 25kg.cm @ 8.4v 22kg.cm @ 7.4v 18kg.cm @ 6.0v Speed: 0.07sec / 60 ° @ 8.4v 0.08sec / 60 ° @ 7.4v 0.09sec / 60 ° @ 6.0v Weight: 78g Working Frequency : 1520us / 333hz Engine: brushless Ball Bearing: 2 compartment -------------------------------------------------------------------- KST815 ข้อมูลจำเพาะ: แรงดันไฟฟ้า: DC6.0V-8.4V ขนาด: 40.5*20*39.5 มม. แรงบิด: 14Kg.ซม.ที่ 6.0 V 17Kg.ซม.ที่ 7.4 V 20Kg.ซม.ที่ 8.4 V ความเร็ว: 0.09sec/60 ที่ 6.0 V 0.08sec/60 ที่ 7.4 V 0.07sec/60 ที่ 8.4 V น้ำหนัก: 68g (กล่อง: 132G) ความถี่ในการทำงาน: 1520us/333Hz
