5pcs/set - คอนเน็กเตอร์พิเศษสำหรับสถานที่มีความร้อนสูง หรือเย็นจัด / WAGO Extreme surrounding temperature connector

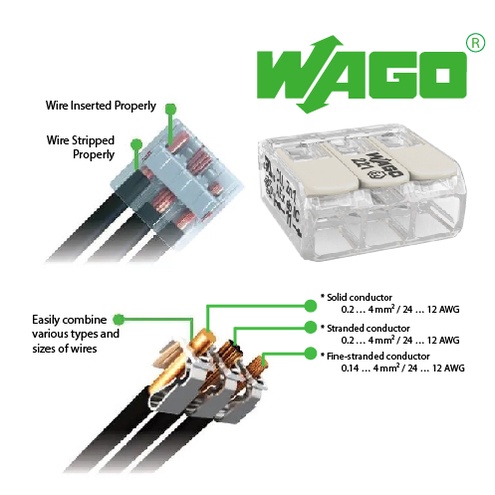

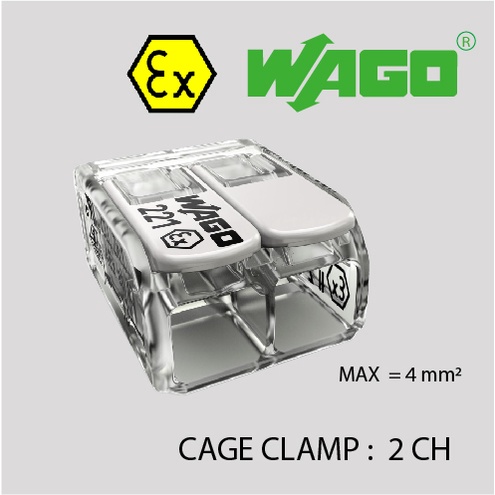

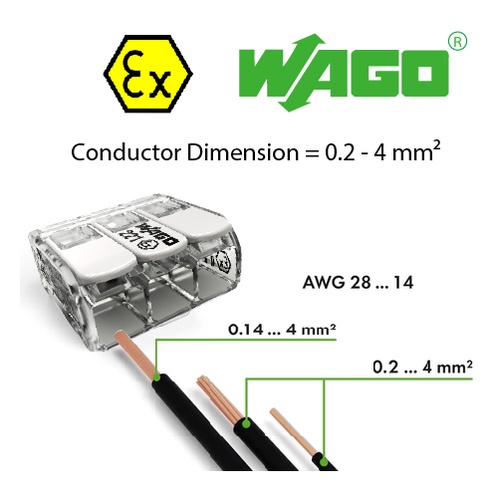

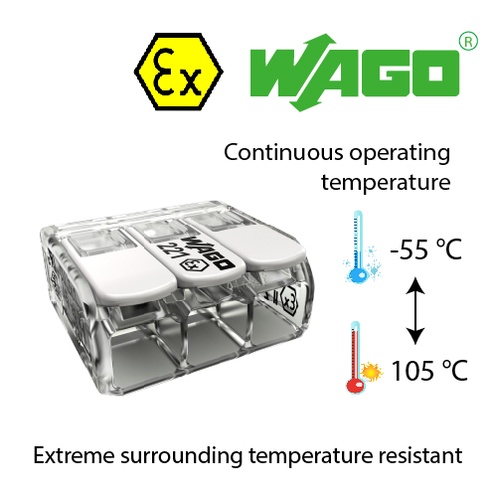

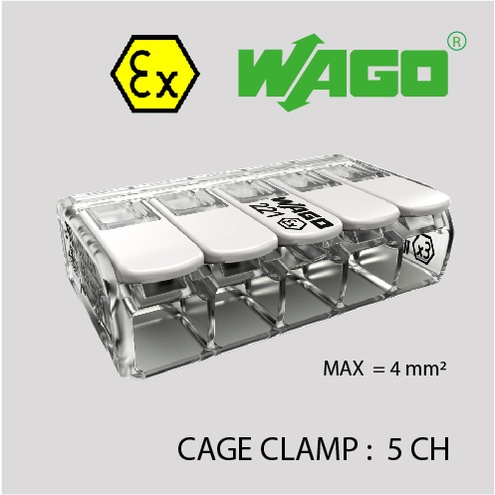

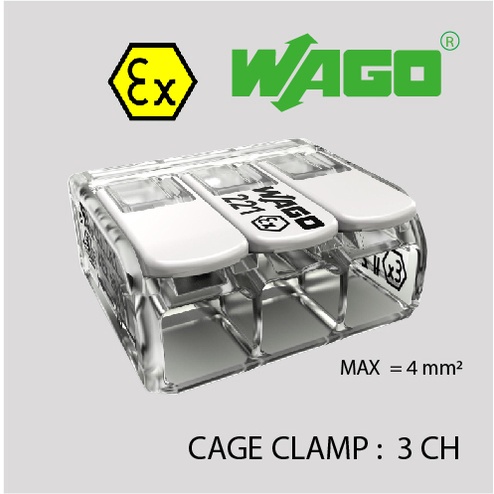

5 pcs/set - WAGO connector for Extreme Surrounding Temperature (-55 ... +105 Celsius) Electrical data • Ratings per ATEX: PTB 18 ATEX 1019 U / IECEx: PTB 18.0045U (Ex eb IIC Gb) • Rated voltage EN (Ex e II) 440V • Rated current (Ex e II) 32A Connection • Connection technology CAGE CLAMP® • Connectable conductor materials Copper • Nominal cross-section 4 mm² • Solid conductor 0.2 … 4 mm² / 24 … 12 AWG • Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG • Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG • Strip length 11 mm / 0.43 inch • Wiring direction Side-entry wiring Material data • - Note on material data Polyamide (PA66), Glass Fiber-Reinforced Polyamide (PA 66 G, Polyphthalamide (PPA GF), Polyamide (PA46), Polycarbonate (PC), Plastics polybutylene terephthalate (PBT), Glass-Fiber-Reinforced Polybutylene Terephthalate (PBT GF) • - Color Transparent • - Flammability class per UL94 V2 • - Fire load 0.055MJ • - Color of actuator light gray Ex- and ATEX-Approved Connector Products • The 221 Ex Series offers the same space savings and convenience as the rest of the 221 Series, but has gray instead of orange levers and offers Ex-approved Class 1, Zone 1 explosion-proof performance. #Wago #connector #คอนเน็กเตอร์
