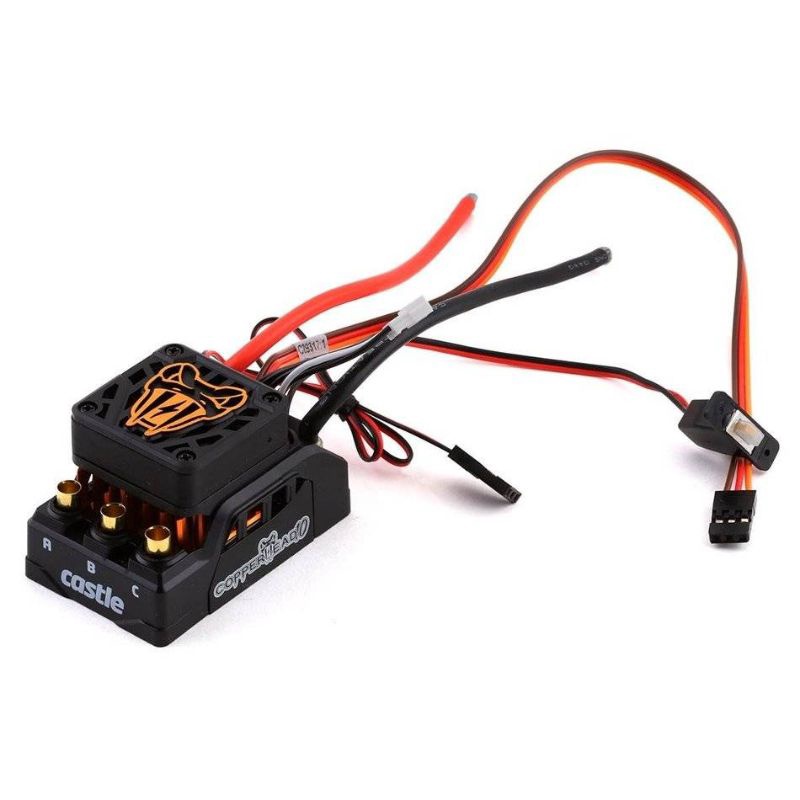

COPPERHEAD 10 PERFORMANCE ESC. Castle Creations

Features: Input Voltage Range (ESC): 2s-4s LiPo. SMARTSENSE™, SENSORED ONLY and BRUSHED Running Modes. Selectable 5.5V or 7.5V (6A peak) BEC (Battery Eliminator Circuit) CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. ESC is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer. 30mm removable fan and DUAL USE FAN GUARD. Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters. AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff. DATA LOGGING LITE* captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp) SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode. Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake. CASTLE LINK USB PROGRAMMING kit (coupon included with purchase) Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and CASTLE LINK APP available on Google Play or Apple App Store.
