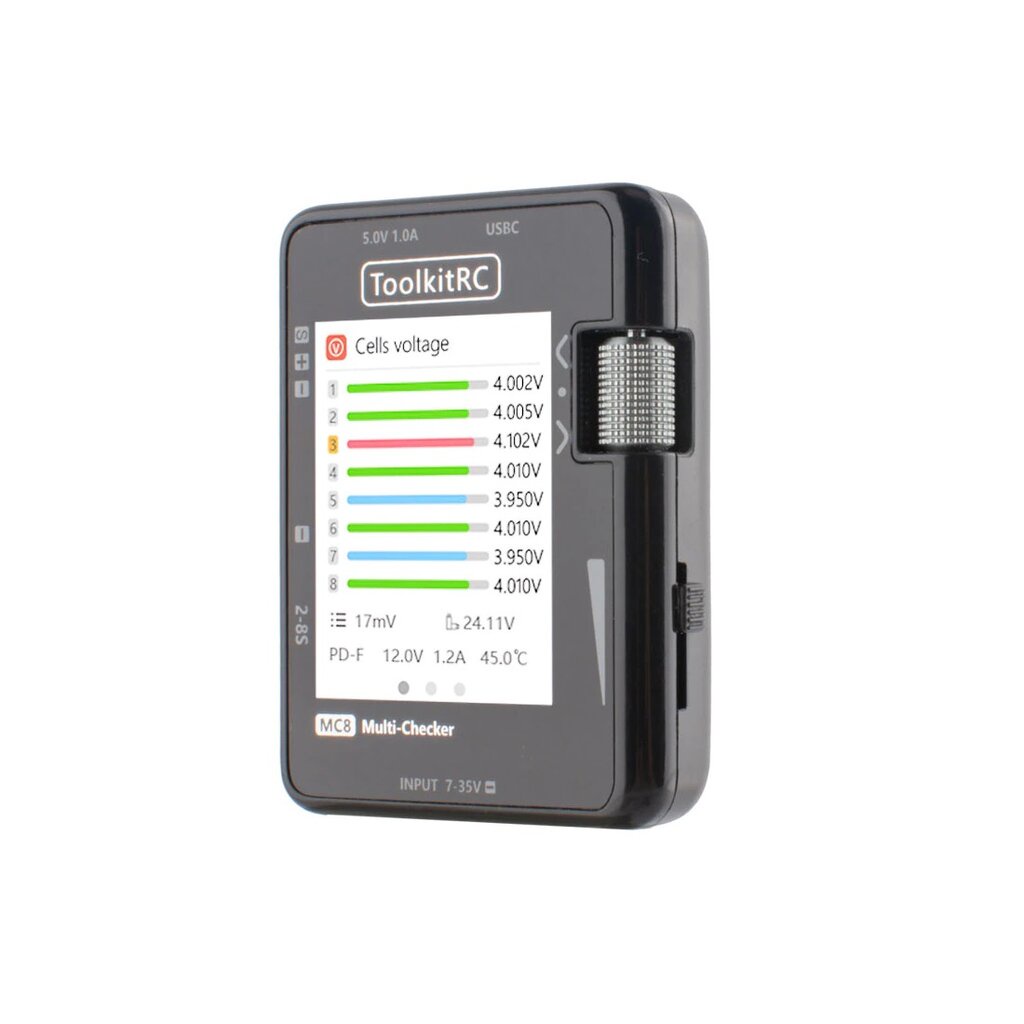

ToolkitRC MC8 Mini Size 32bit Battery Multi-Checker PPM SBUS Readout เครื่องเช็คแบตเตอรี่หลากฟังก์ โดรน Drone Charger

Specifications Main input port XT60 7.0V-35.0V Balance input 0.5V-5.0V Lixx 2-8S Signal port input 6.0V Balance current MAX 60mA @2-8S Balance accuracy 0.005V @ 4.2V USB-A output 5.0V@1.0A firmware upgrade USB-C output 5.0V-12.0V @MAX 20W USB-C protocol PD3.0 QC3.0 AFC SCP FCP Measurement PWM 500-2500us @20-400Hz PPM 880-2200us*8CH @20-50Hz SBUS 880-2200us *16CH @20-100Hz Output PWM 1000-2000us @20-1000Hz PPM 880-2200us*8CH @50Hz SBUS 880-2200us *16CH @74Hz Item Size 68mm*50mm*15mm Item Weight 50g Package Size 76mm*60mm*30mm Package Weight 100g LCD IPS 2.0 inch 240*240 resolution
