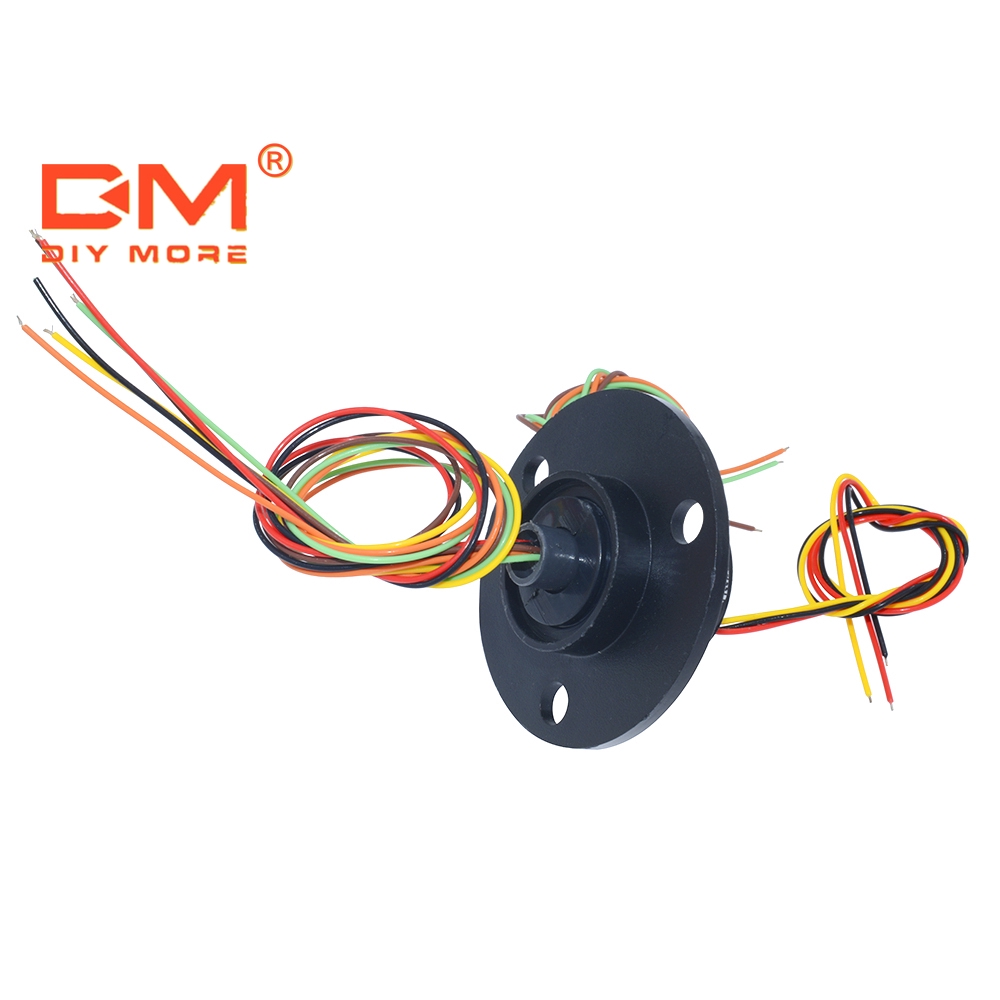

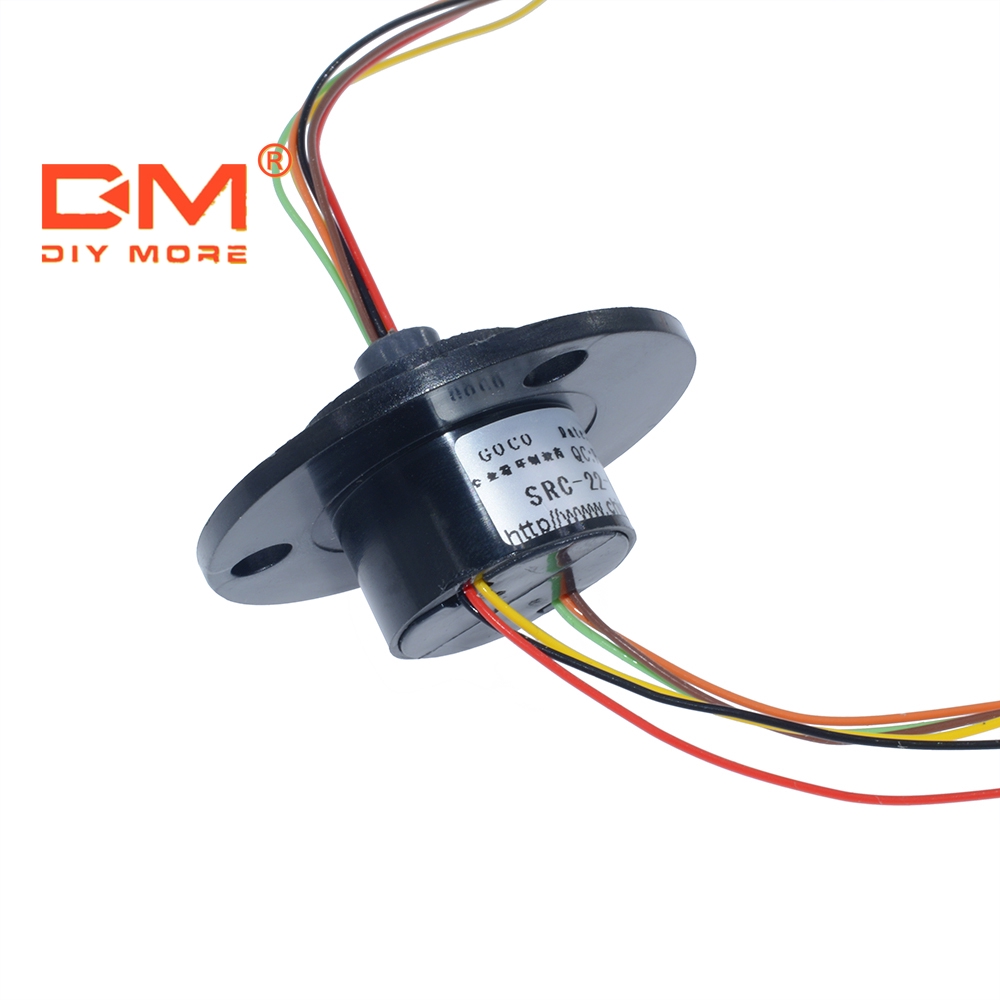

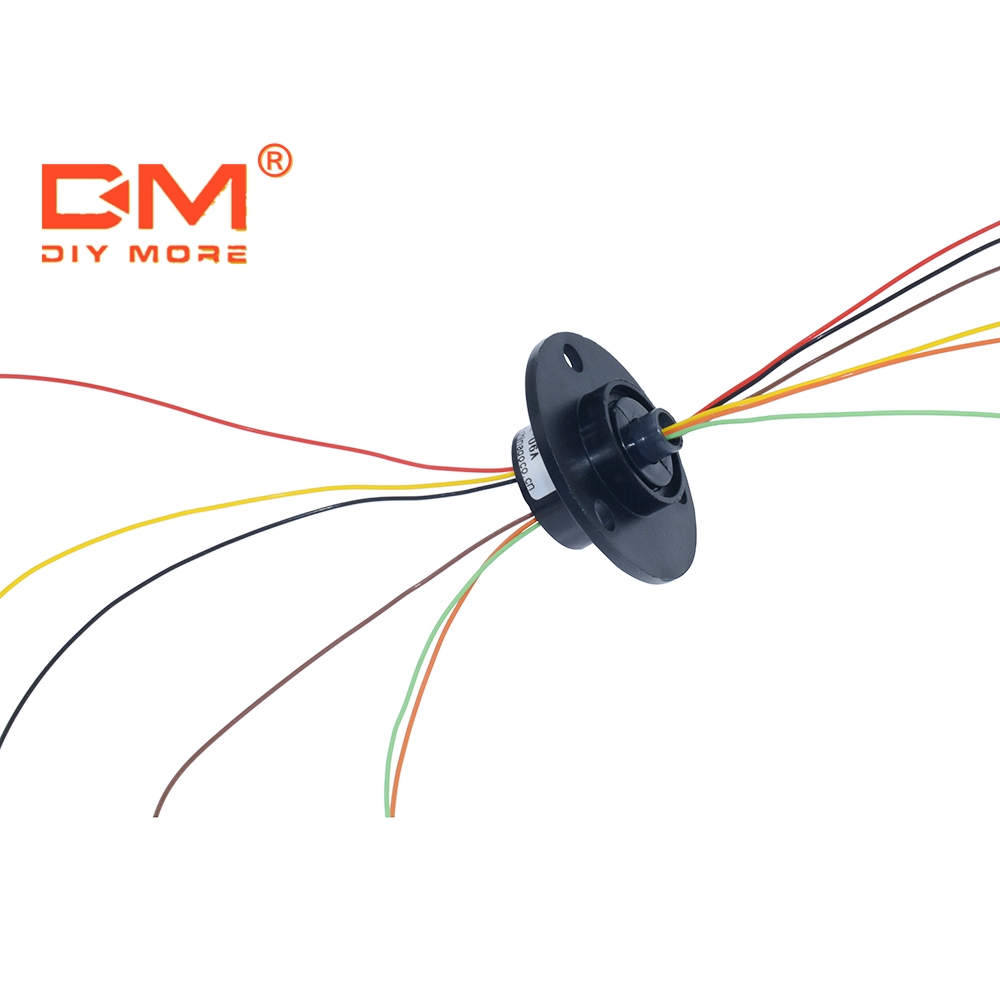

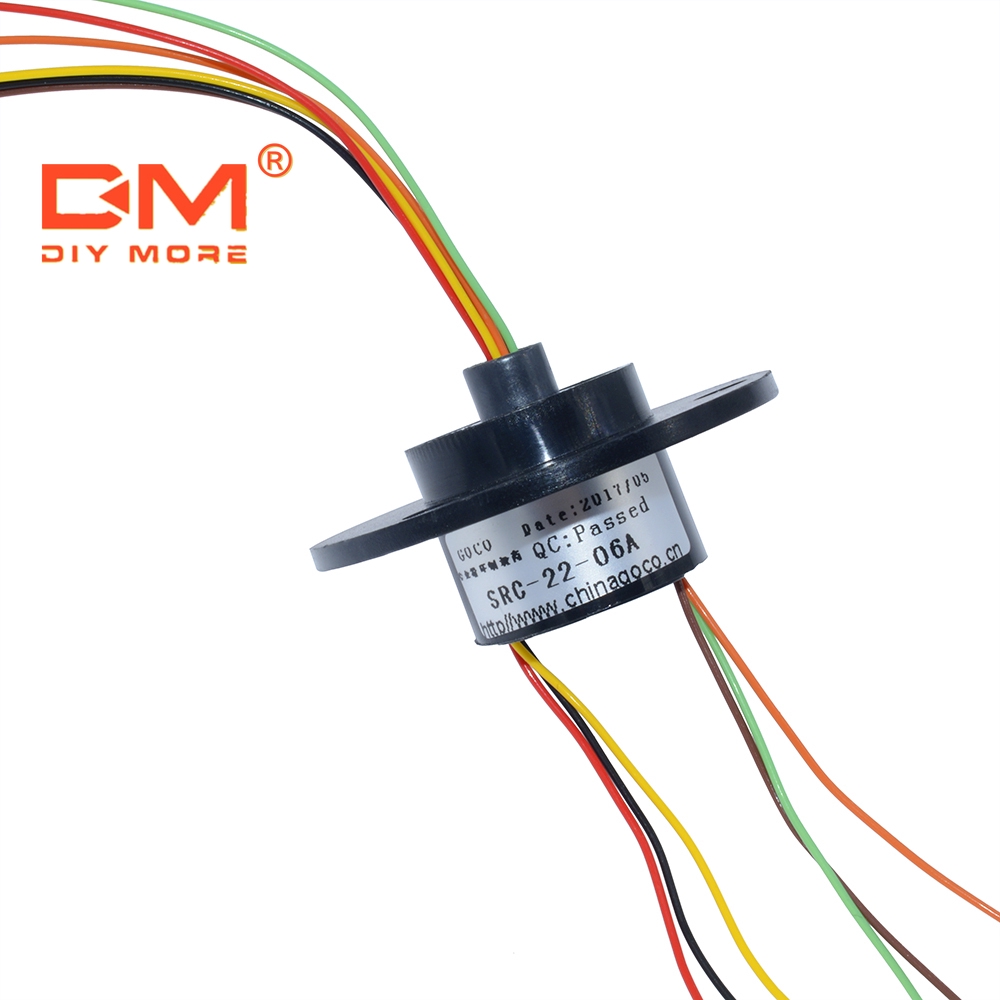

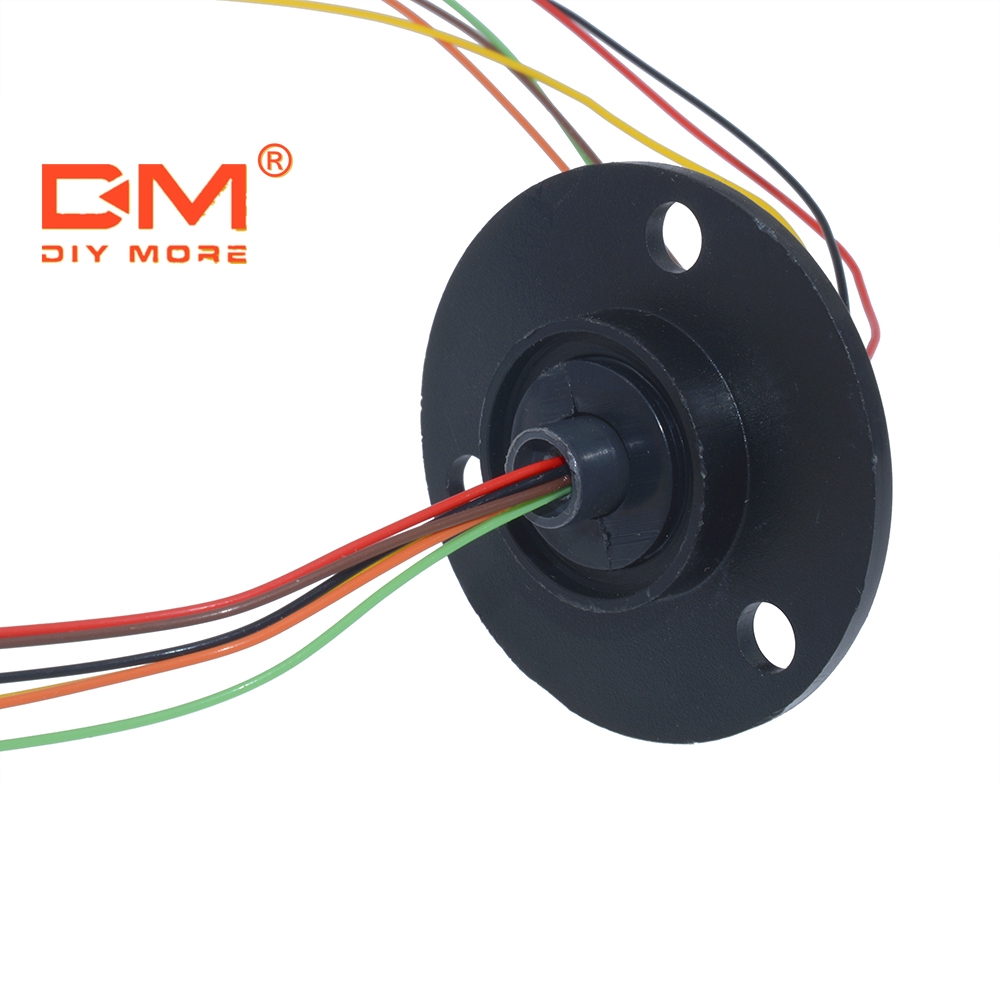

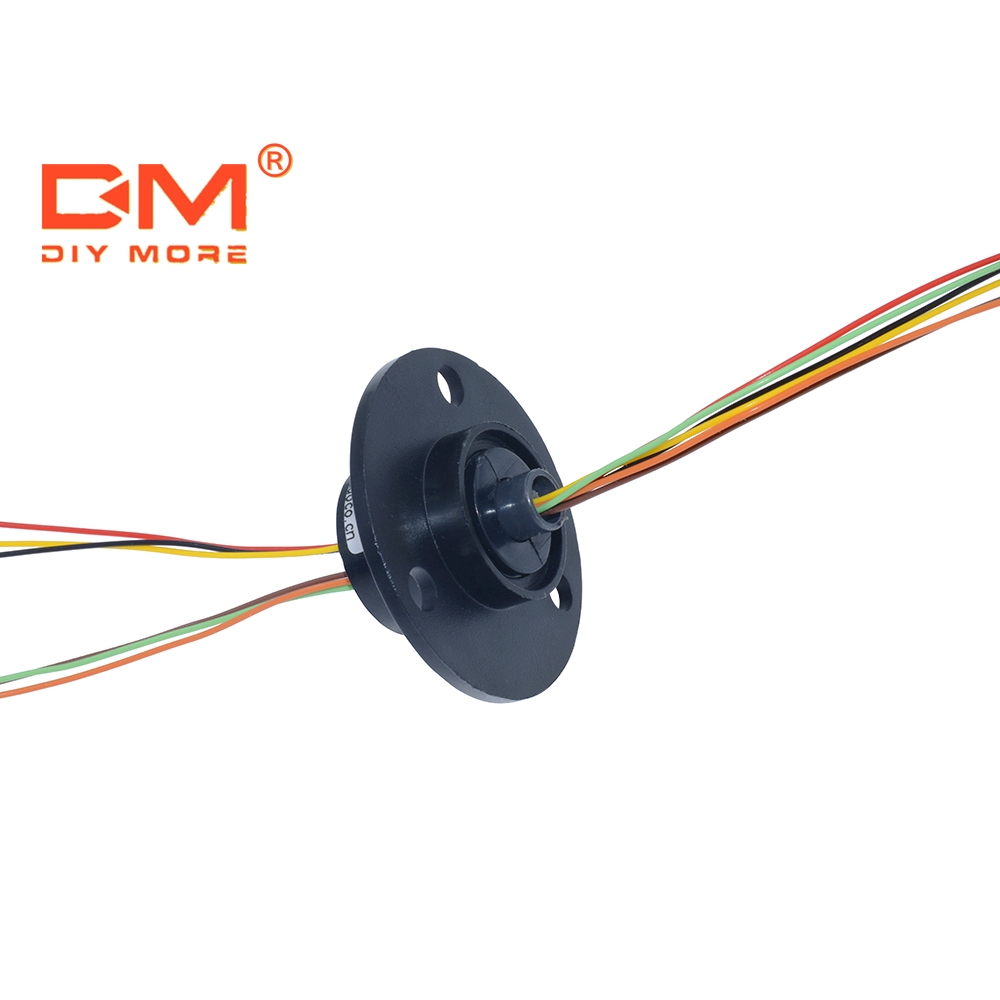

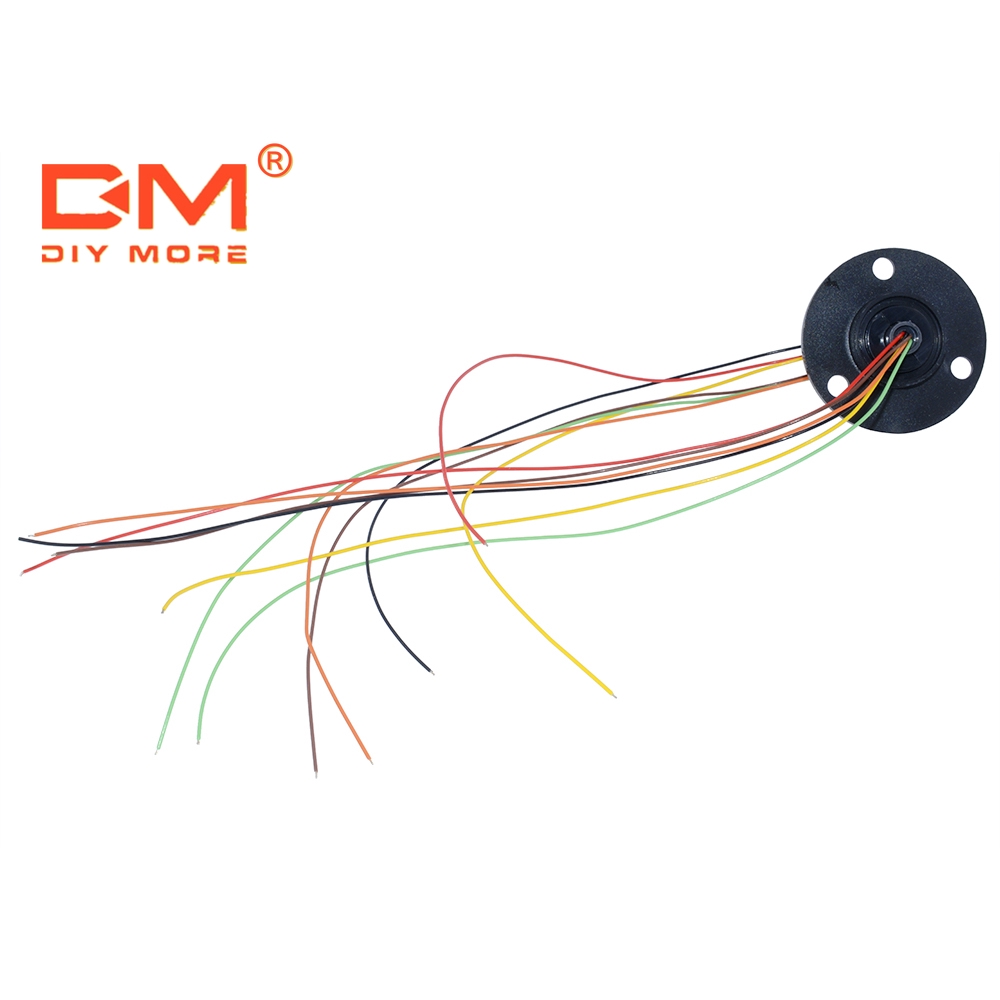

Diymore Ac 220V 250Rpm 6 สาย 6 ตัวนําแคปซูล ขนาดกะทัดรัด สลิปริง สําหรับอุปกรณ์ทดสอบไฟฟ้ากล้องวงจรปิด (22 มม.)

Description: The capsule slip ring is a standard off-the-shelf series with gold contacts at the swivel interface. Color-coded wires are used on both the stator and rotor to simplify electrical connections. Using a 90-degree V-groove design for each ring, the ZSR-A offers smoother operation, lower torque, and lower contact wear rates than the competition. Feature: - Designed with advanced technology to reduce consumption. - The compression design allows for great flexibility in handling system size limits: 22.0mm OD and 19.53mm to 42.53mm (depending on the circuit). - Combine signals and power in the same slip ring, fully satisfying 360 degree rotation - Precision modules provide long-term maintenance - free operation (no need to clean or lubricate). Specification: - Operating voltage: 220 V / AC Operating speed: 250 rpm Circuit: 6 - Material: Engineering Plastics - Operating humidity: 60% RH or higher Operating temperature: 40 ° C ~ + 80 ° C - Operating current: 2A per circuit - Contact material: gold-plated ring - gold-plated brush - Insulation resistance: 1000MΩ@ 500 VDC - Size: 150mm 30#AWG Teflon line - Electrical strength: ≥500 VAC @ 50Hz between each circuit and all other circuits - Electrical noise: up to 70 milliohms. Tested at 6 VDC and 50 mA at 5 rpm - Working life: depending on speed and working environment Outer diameter: 22.0mm Diameter: 44.5mm Length: 19.2mm Application: - CCTV monitoring system. - Electrical test equipment. - Medical equipment. -Robotics.
