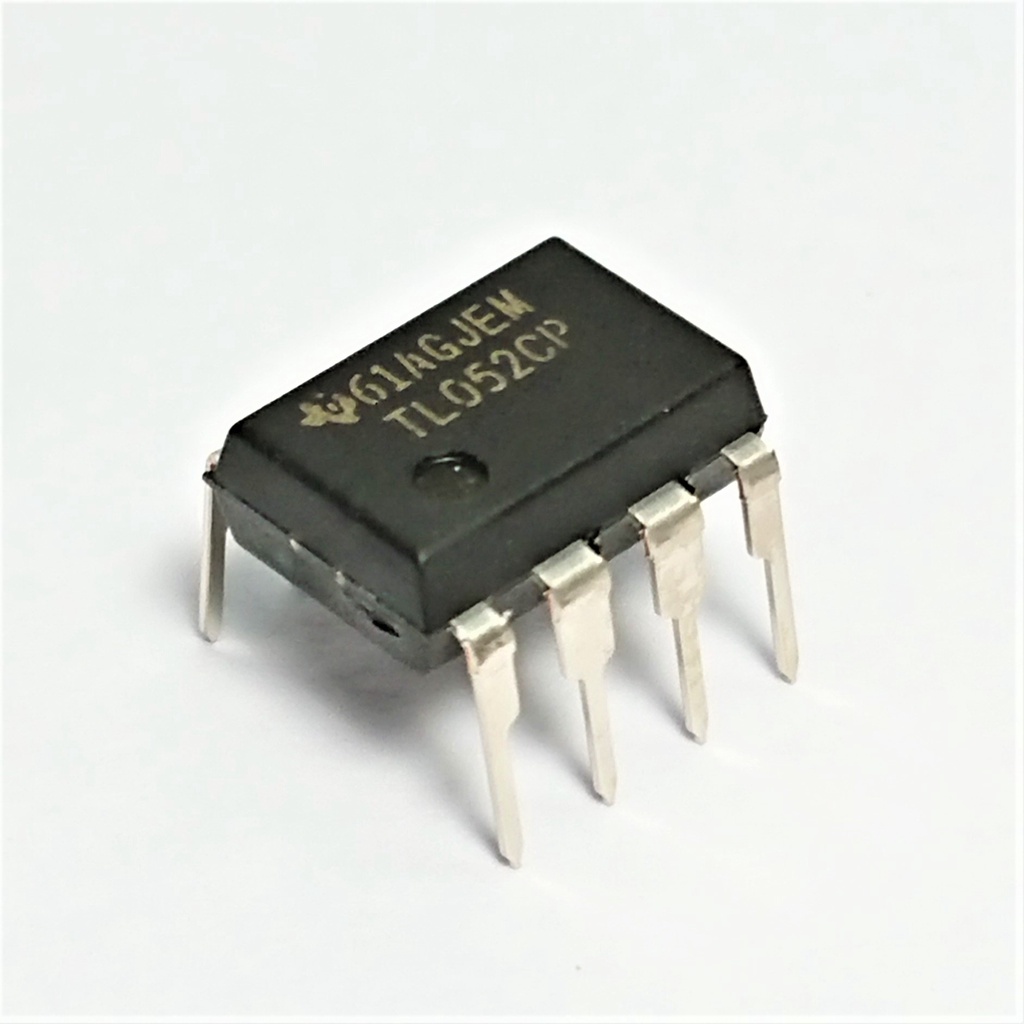

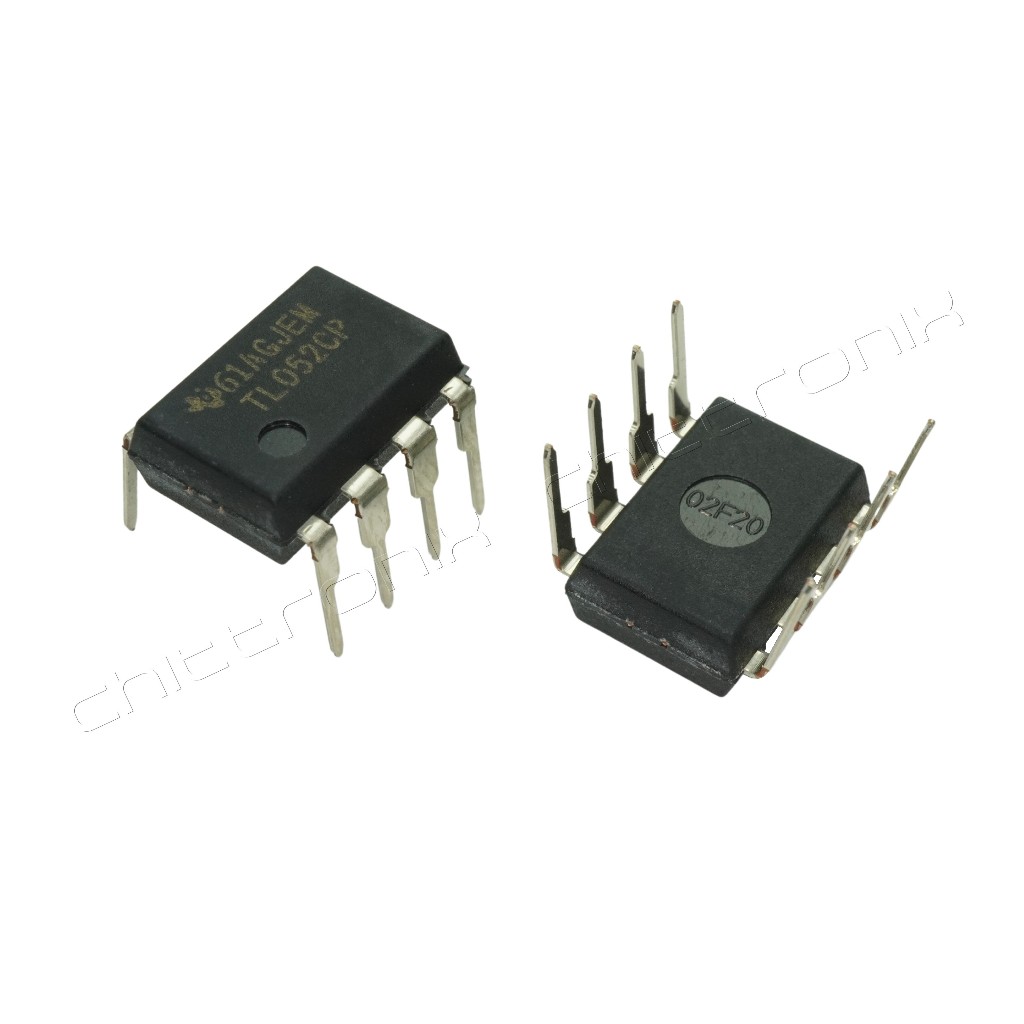

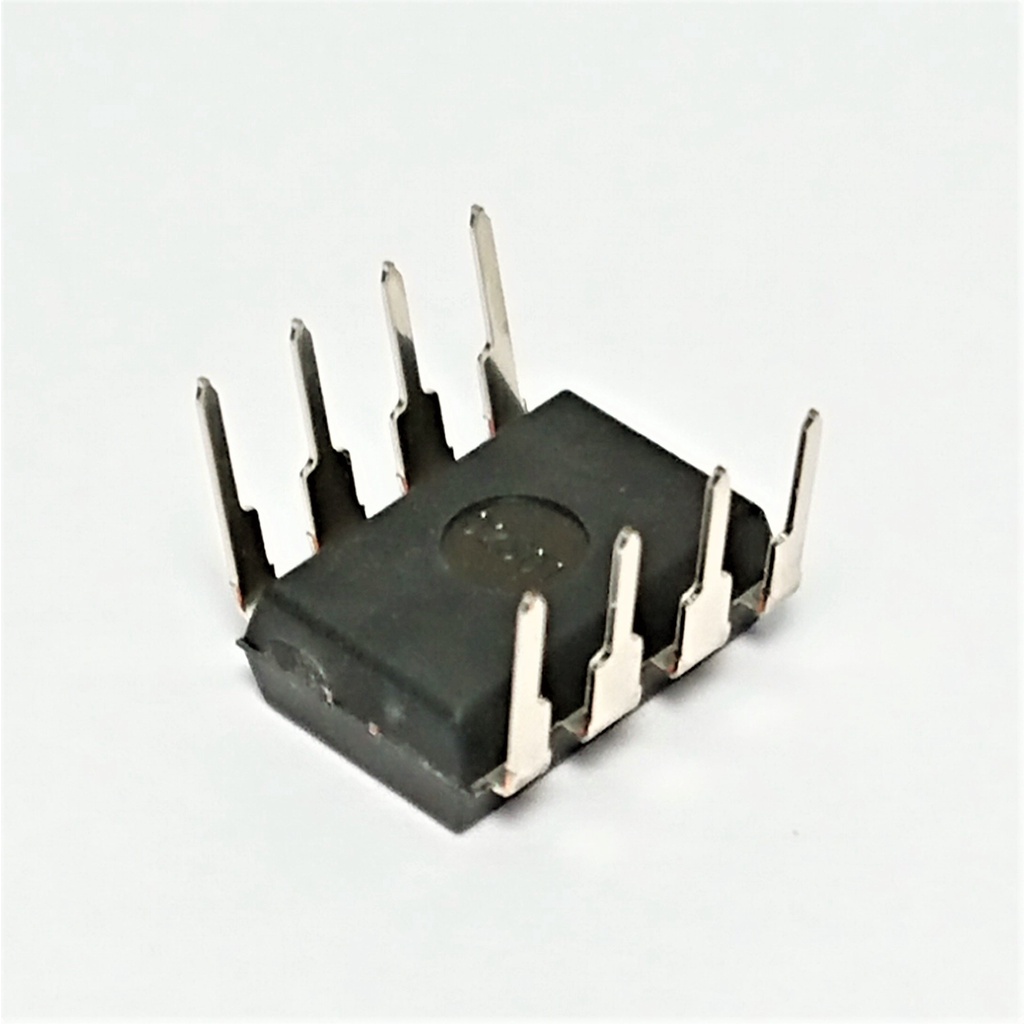

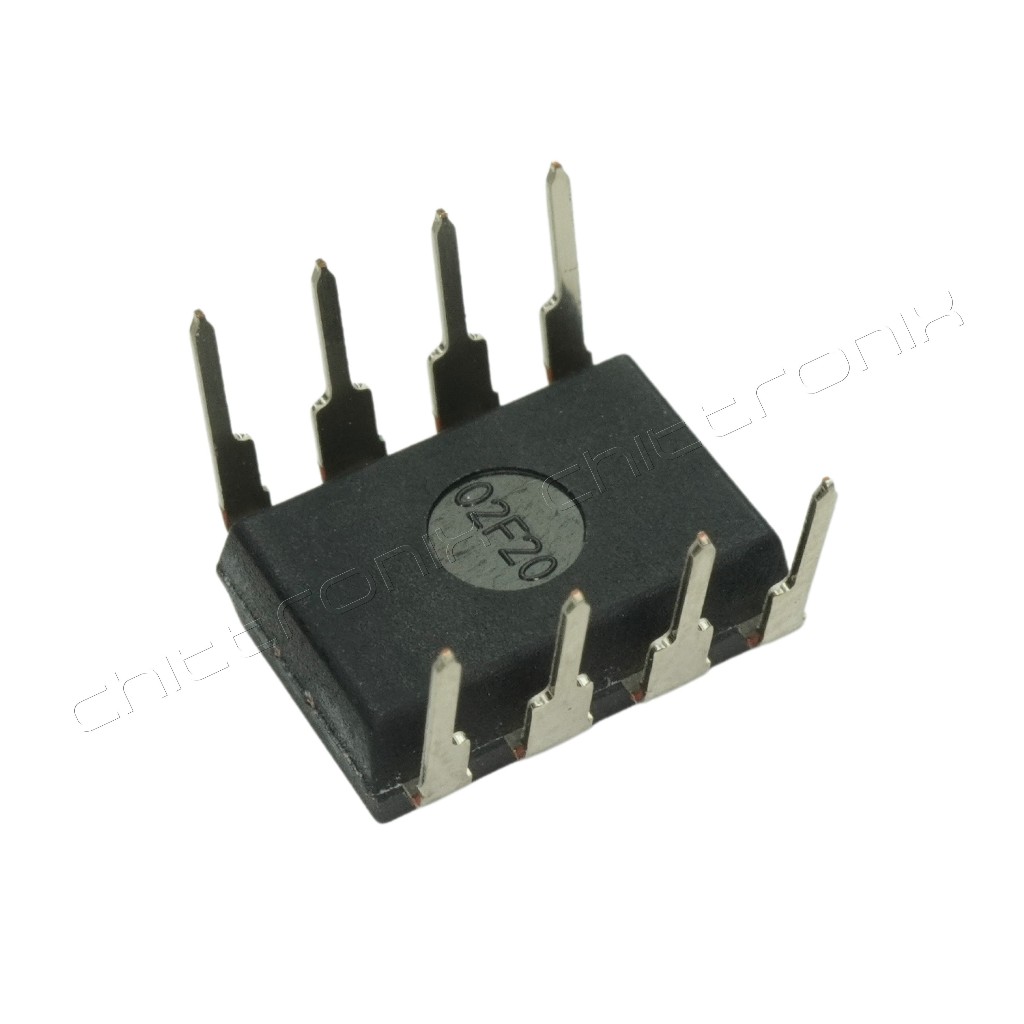

TL052CP IC OpAmp แบบ DIP 8 ขา ยี่ห้อ Texas ของแท้

Manufacturer : Texas Instruments Product Category : Precision Amplifiers Series : TL052 Number of Channels : 2 Channel GBP - Gain Bandwidth Product : 3 MHz SR - Slew Rate : 20 V/us CMRR - Common Mode Rejection Ratio : 93 dB Output Current per Channel : 80 mA Ib - Input Bias Current : 30 pA Vos - Input Offset Voltage : 650 uV en - Input Voltage Noise Density : 18 nV/sqrt Hz Supply Voltage - Max : 30 V Supply Voltage - Min : 10 V Operating Supply Current : 4.8 mA Minimum Operating Temperature : - 40 C Maximum Operating Temperature : + 85 C Shutdown : No Shutdown Mounting Style : Through Hole Package/Case : PDIP-8 Packaging : Tube Amplifier Type : Low Offset Amplifier Brand : Texas Instruments Dual Supply Voltage : +/- 9 V, +/- 12 V Height : 4.57 mm In - Input Noise Current Density : 0.01 pA/sqrt Hz Input Type : Rail-to-Rail Length : 9.81 mm Maximum Dual Supply Voltage : +/- 15 V Minimum Dual Supply Voltage : +/- 5 V Operating Supply Voltage : +/- 5 V to +/- 15 V Product : Precision Amplifiers Product Type : Precision Amplifiers Subcategory : Amplifier ICs Supply Type : Dual Technology : BiFET Vcm - Common Mode Voltage : Negative Rail + 4 V to Positive Rail - 4 V Voltage Gain dB : 95.42 dB Width : 6.35 mm
