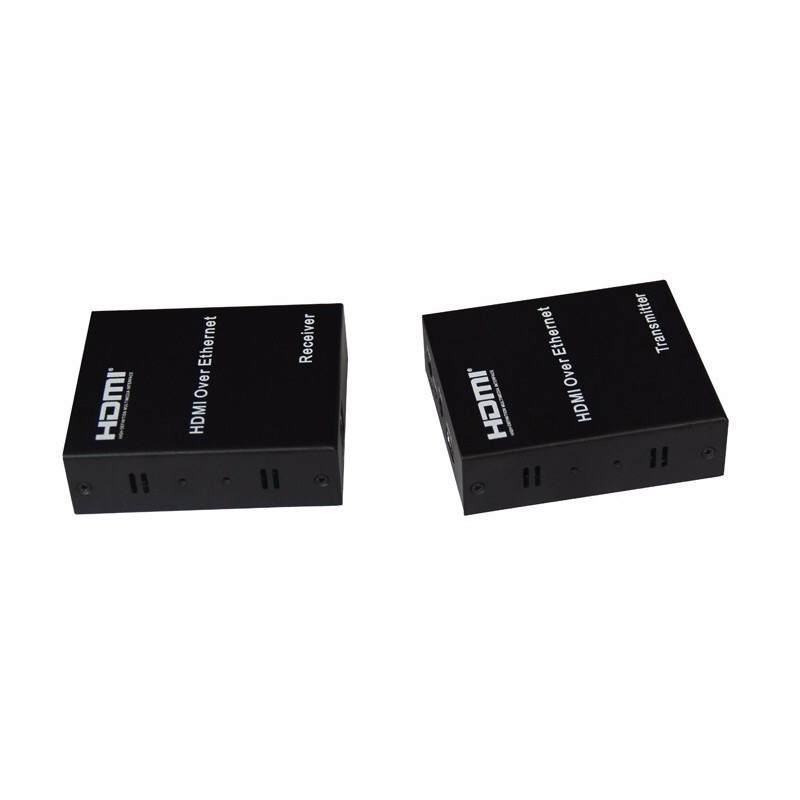

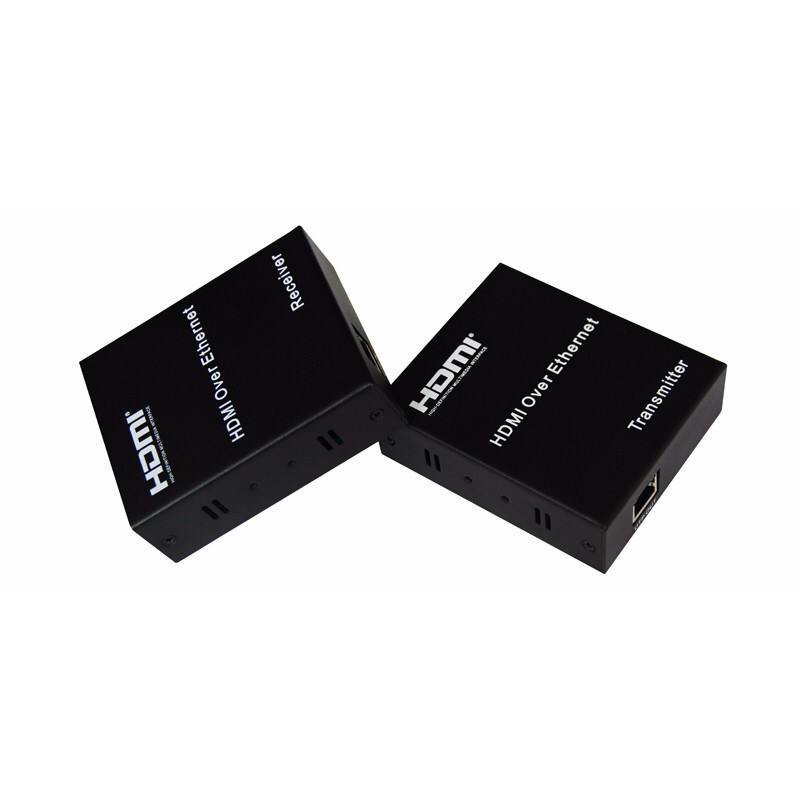

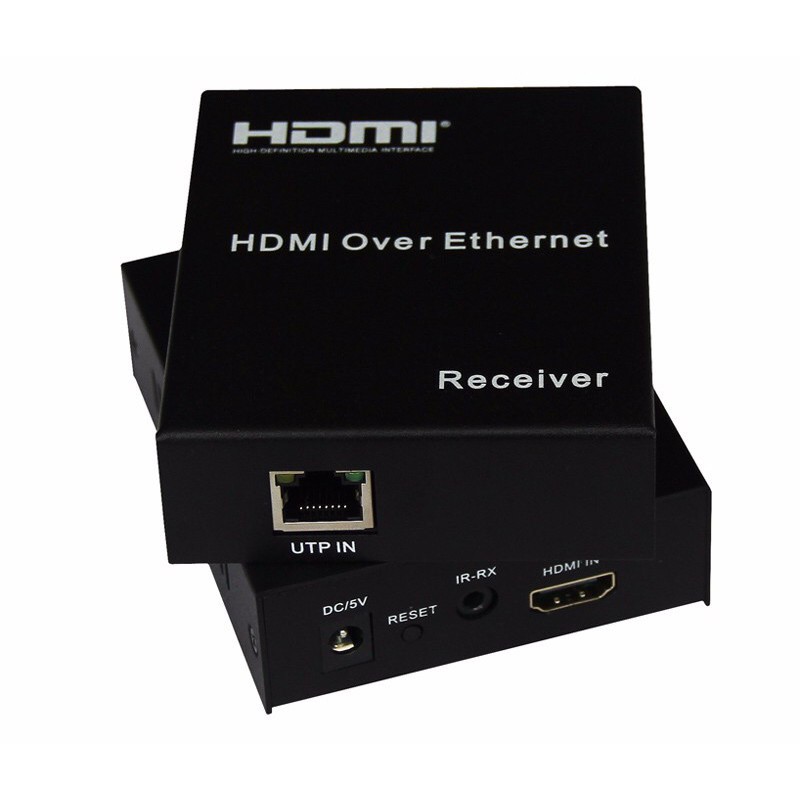

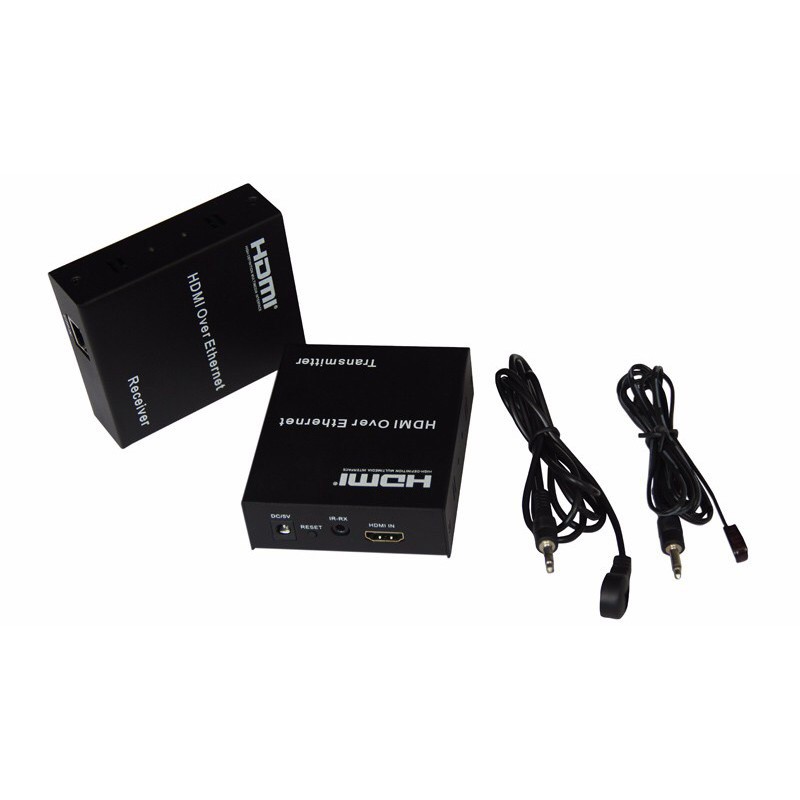

เฮดดีเอ็มไอ hdmi Extender to RJ45 Over Cat 5e/6 Network LAN Ethernet Adapter 120M

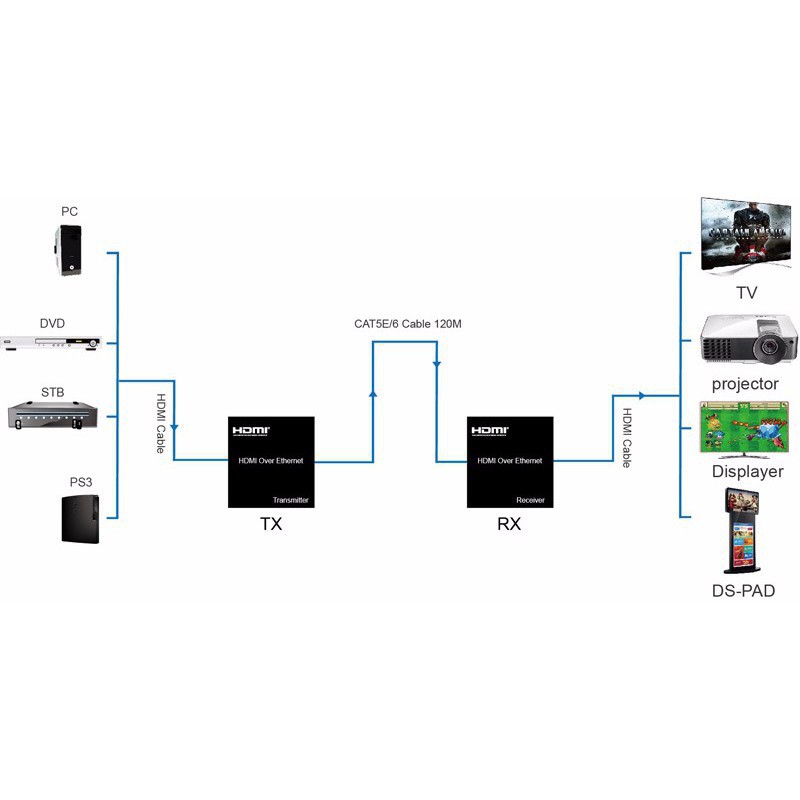

Extend 1080 FULL HD HDMI signal to 120meter through a Cat-5e/6 cable. Using CAT-5E/6 Cable instead of HDMI cable to achieve long distance transmission HDTV Resolutions 480p,576p,720p,1080p HDMI 1.3, HDCP 1.1 and DVI1.1 compliant. Audio Sample rate: 32kHz, 44.1kHz and 48kHz IR remote control 38KHz; NEC Introduction HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standardyou can extend your HD video to multiple displays by using an Ethernet Switch. HDTV Resolutions 480p,576p,720p,1080p Audio Sample rate:32kHz,44.1kHz,48kHz IR remote control 38kHz;NEC HDMI HDMI 1.3 HDCP HDCP 1.2 Power adapter Input100V-240V(50-60Hz) Output:5V/1A Power consumption HDMI Sender:3W HDMI receiver:3W Size(L-W-H) 92x79x20mm Weight 240g x 2 Operating Temperature/Humidity 0-70/10%-80%RH(no condensation) Storage Temperature/Humidity -10-80/5%-90%RH(no condensation) Specifications Ø Following TCP/IP standard. Ø Support HDMI1.3 protocol. Ø HDCP1.1 & 1.2 protocol compliant Ø Support point-to-point mode, one point-to-many mode and cascade connection mode. Ø Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices. Packing contents: 1) Main unit No. 1 Sender , Main unit No. 2 Receiver 2) Two pieces of 5V DC Power Supply. 3) one piece of IR transmitter and one piece of IR receiver 4) User’s Manual 5V/1A Supply power for the Transmitter Reset Hold down the key,the model will re-start IR-out Connect IR transmitter this Port HDMI-in Connect HDMI sink source to this Port HDMI Receiver 5V/1A Supply power for the Receiver Reset Hold down the key,the model will re-start IR-in Connect IR Receiver this Port HDMI-out Connect HDMI sink device to this Port Connection and operation 1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender. 2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source’s IR receiver. 3) Connect the HDMI out of Receiver to HDTV display. 4) Connect the IR receiver to the Receiver IR IN Port. 5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver. 6) Plug two pieces of 5V power supply into the Sender and Receiver. 7) Power on the HDTV display and HDMI source.
