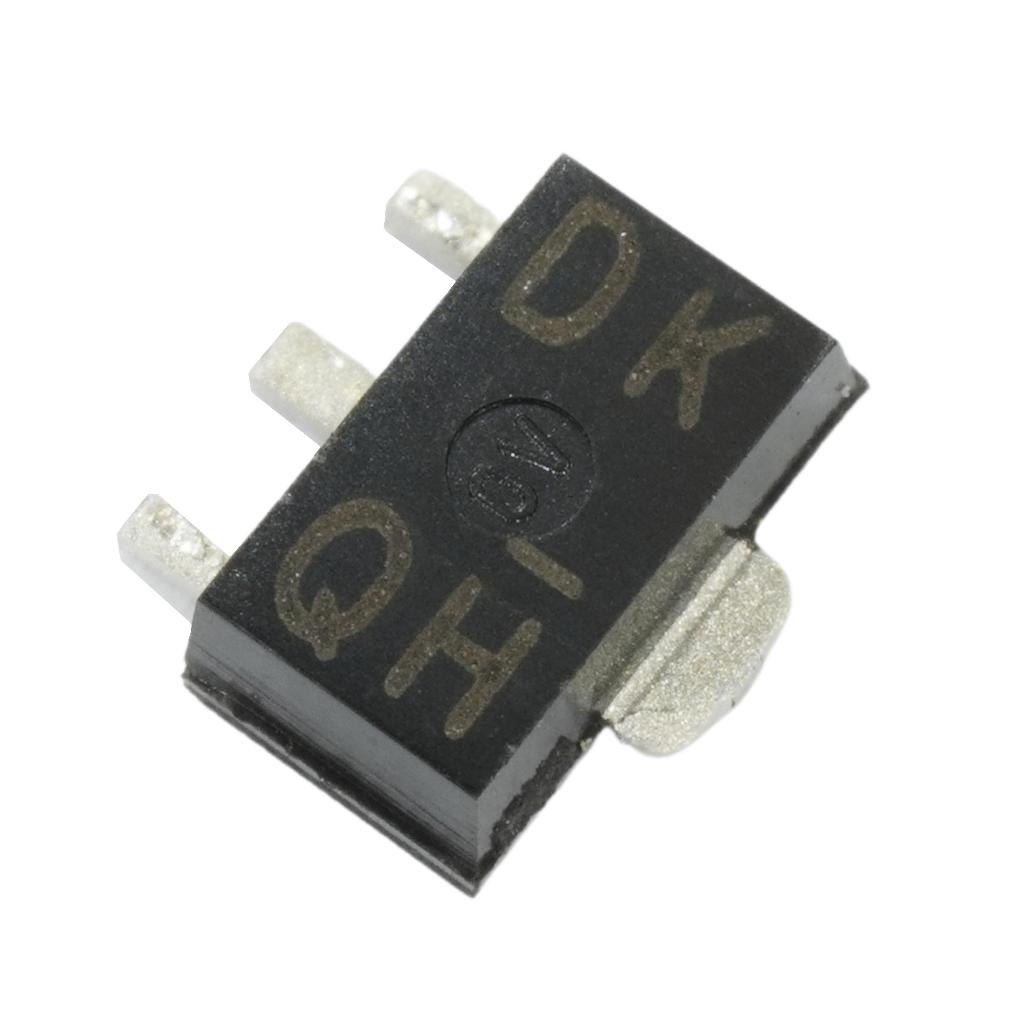

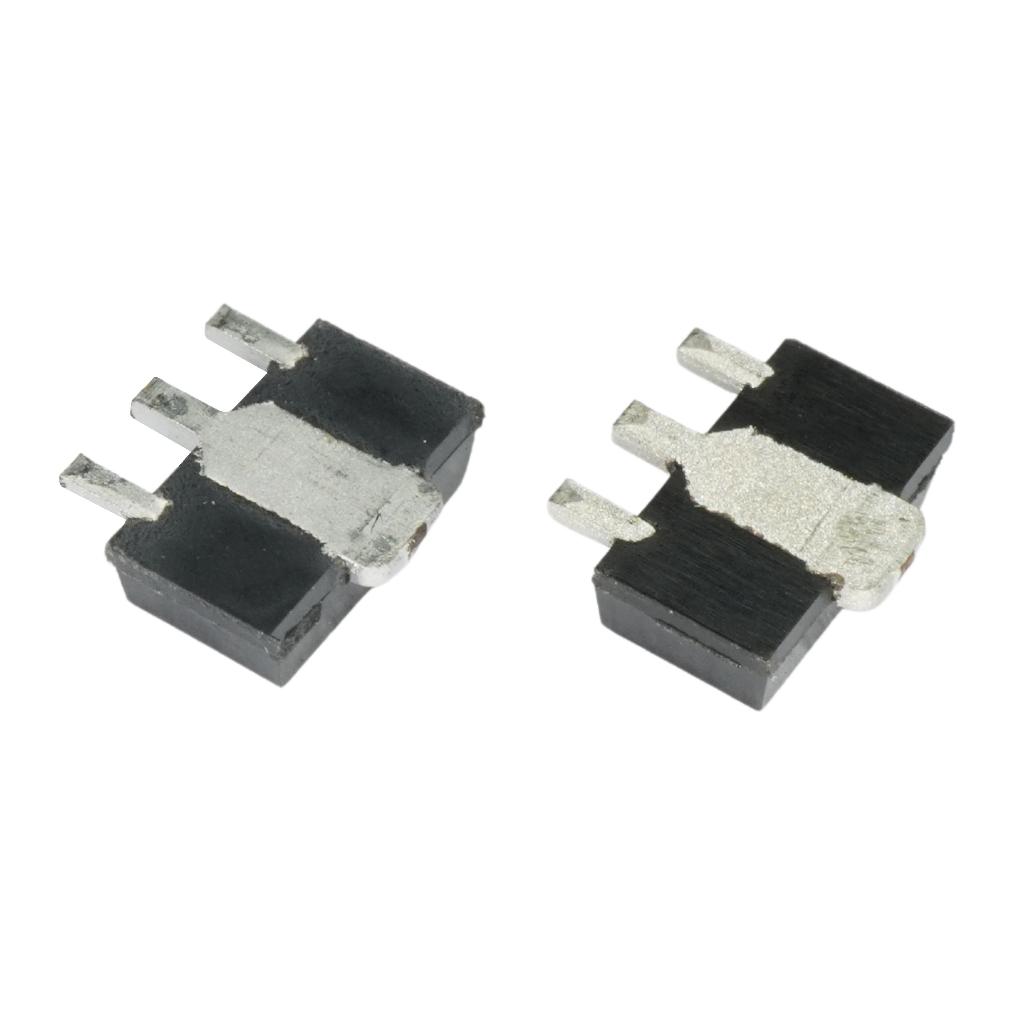

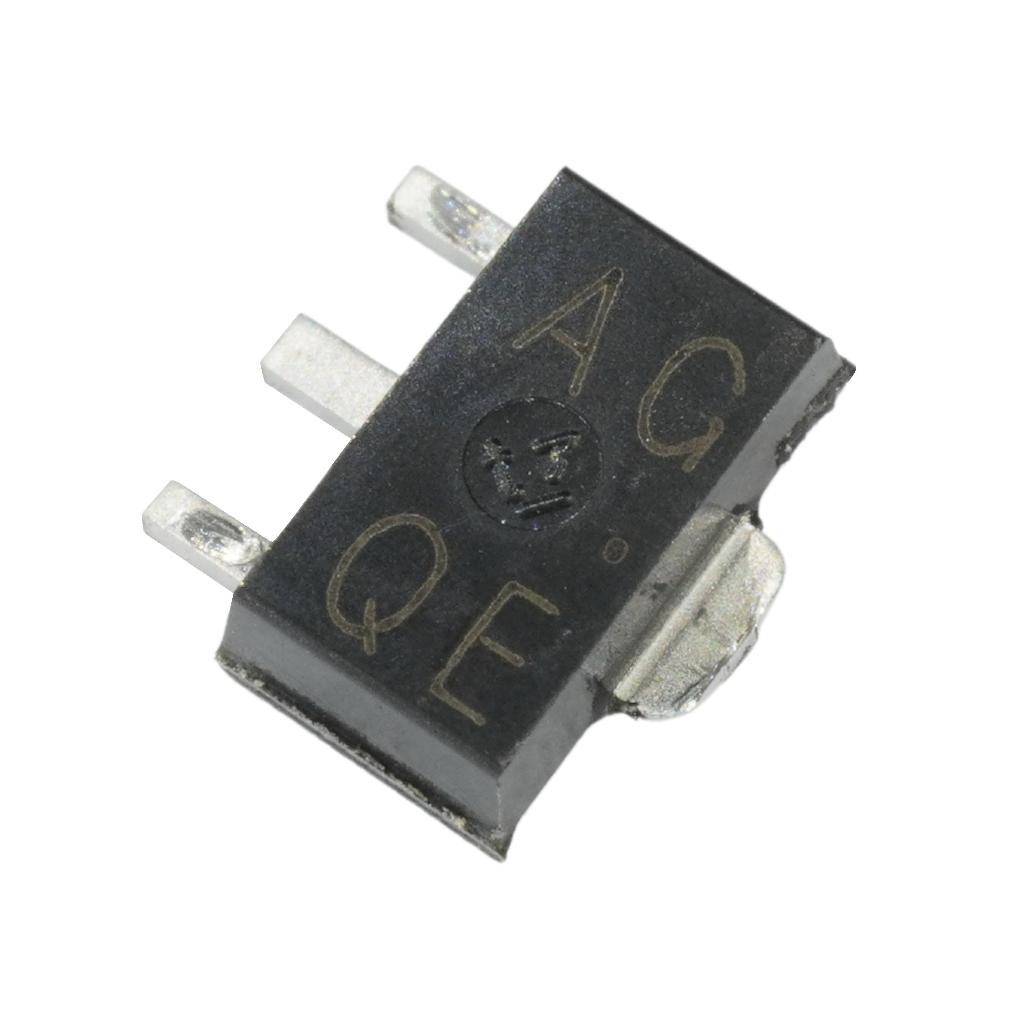

AG AGQ 2SA1797 DK DKQ 2SC4672 ทรานซิสเตอร์ Transistor ยี่ห้อ ROHM (ราคาต่อ 1 ตัว)

Type Designator: 2SA1797-Q SMD Transistor Code: AGQ Material of Transistor: Si Polarity: PNP Maximum Collector Power Dissipation (Pc): 0.5 W Maximum Collector-Base Voltage |Vcb|: 50 V Maximum Collector-Emitter Voltage |Vce|: 50 V Maximum Emitter-Base Voltage |Veb|: 6 V Maximum Collector Current |Ic max|: 2 A Max. Operating Junction Temperature (Tj): 150 °C Transition Frequency (ft): 200 MHz Collector Capacitance (Cc): 36 pF Forward Current Transfer Ratio (hFE), MIN: 120 Noise Figure, dB: - Package: SOT89 Type Designator: 2SC4672-Q SMD Transistor Code: DKQ Material of Transistor: Si Polarity: NPN Maximum Collector Power Dissipation (Pc): 0.5 W Maximum Collector-Base Voltage |Vcb|: 60 V Maximum Collector-Emitter Voltage |Vce|: 50 V Maximum Emitter-Base Voltage |Veb|: 6 V Maximum Collector Current |Ic max|: 2 A Max. Operating Junction Temperature (Tj): 150 °C Transition Frequency (ft): 210 MHz Collector Capacitance (Cc): 25 pF Forward Current Transfer Ratio (hFE), MIN: 120 Noise Figure, dB: - Package: SOT89
